Shenzhen Supplier Correlation Photoelectric Sensor Infrared Radiation Count Module Infrared Sensor
-
Highlight
Infrared Radiation Count Module
,Shenzhen Supplier Count Module
-
FeaturesSmall Size And Lightweight
-
ApplicationPhotoelectric Counter Counting Sensor
-
Series-
-
Mounting TypeSMD
-
Size / Dimension27.6mm*20mm*17mm
-
DescriptionPhotoelectric Counter Counting Sensor
-
TypeModule, Module
-
ConfigurationStandard
-
CurrentStandard
-
VoltageStandard
-
Voltage - IsolationStandard
-
Package / CaseStandard
-
Cross Reference/N
-
Width Of Optical Coupling Slot10mm
-
Main ChipLM393, Groove Type Optocoupler H2010
-
Working VoltageDC 5V
-
Size27.6mm*20mm*17mm
-
MOQ1 Pcs
-
Place of OriginOriginal
-
Brand NameOriginal
-
Model Number3276
-
Minimum Order Quantity5 pieces
-
PriceCN¥3.97/pieces 5-99 pieces

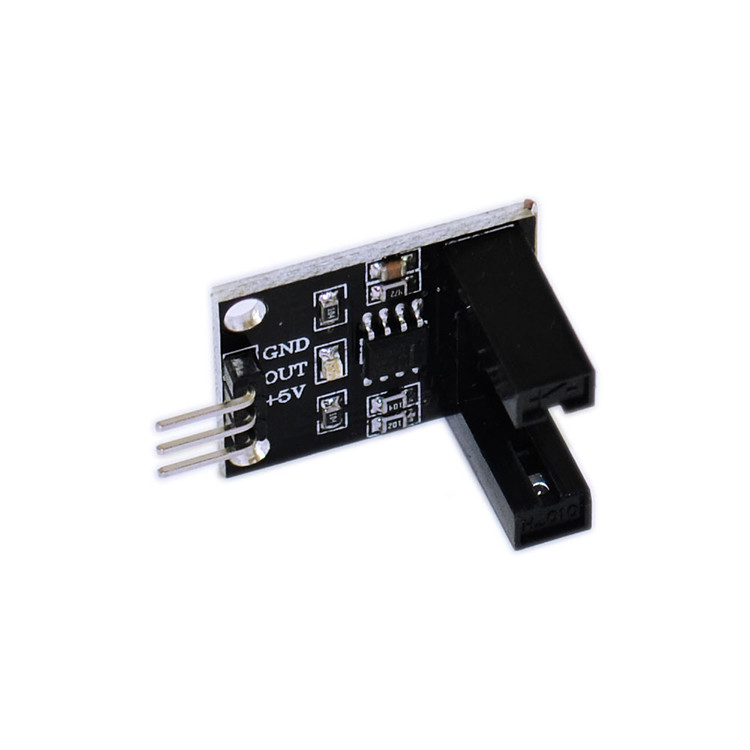

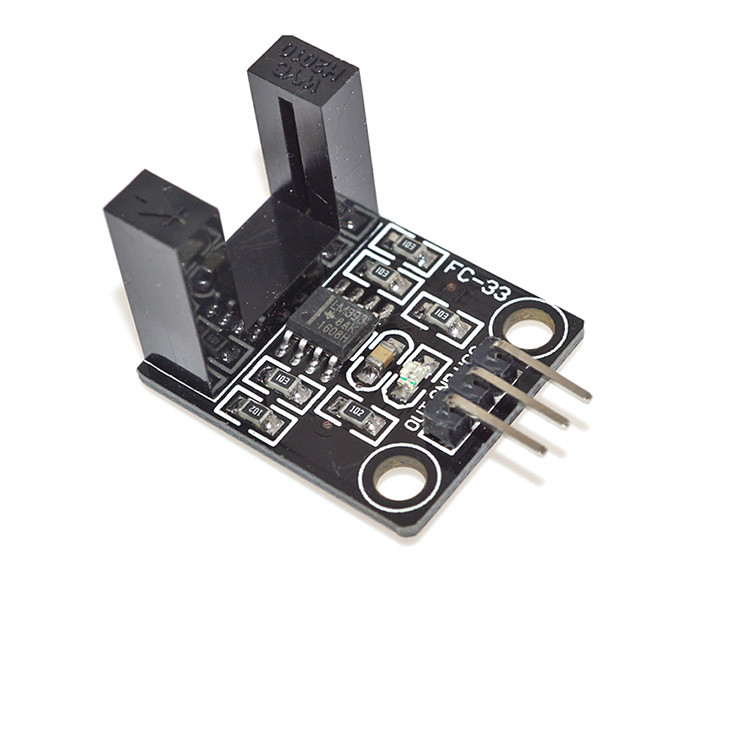

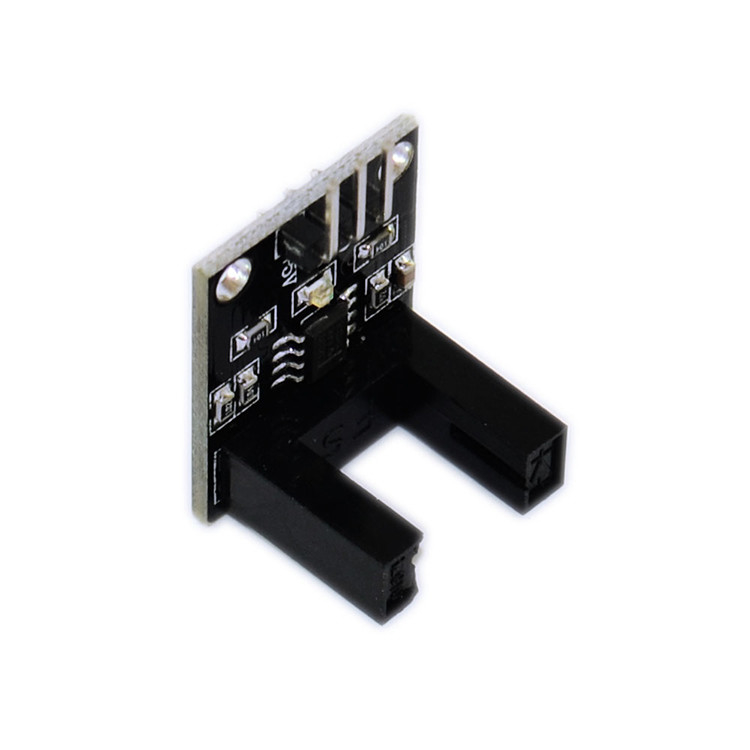

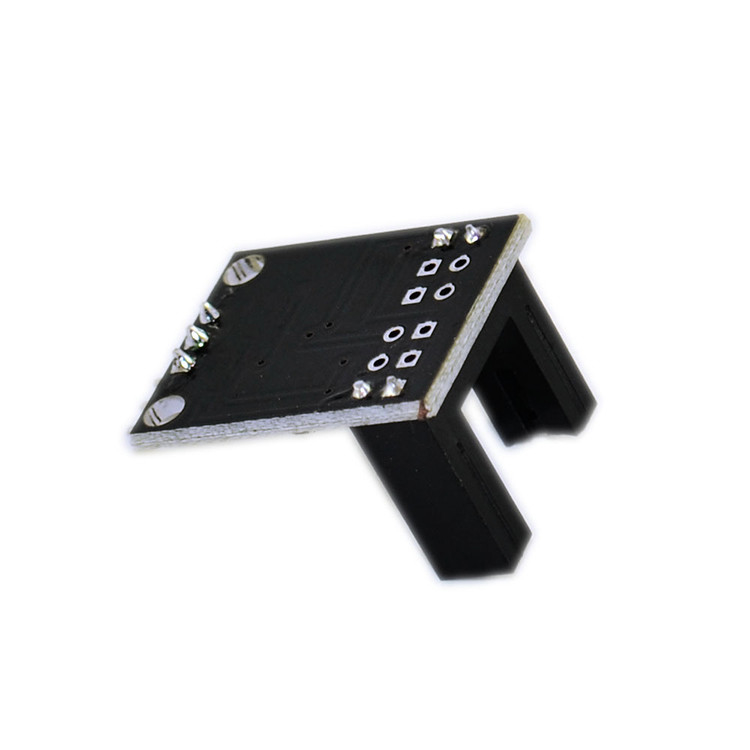

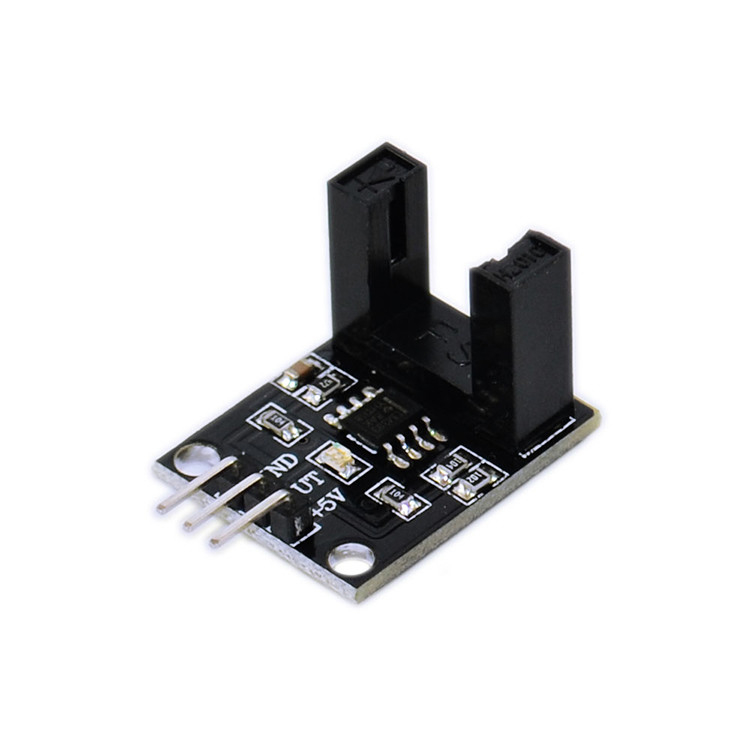

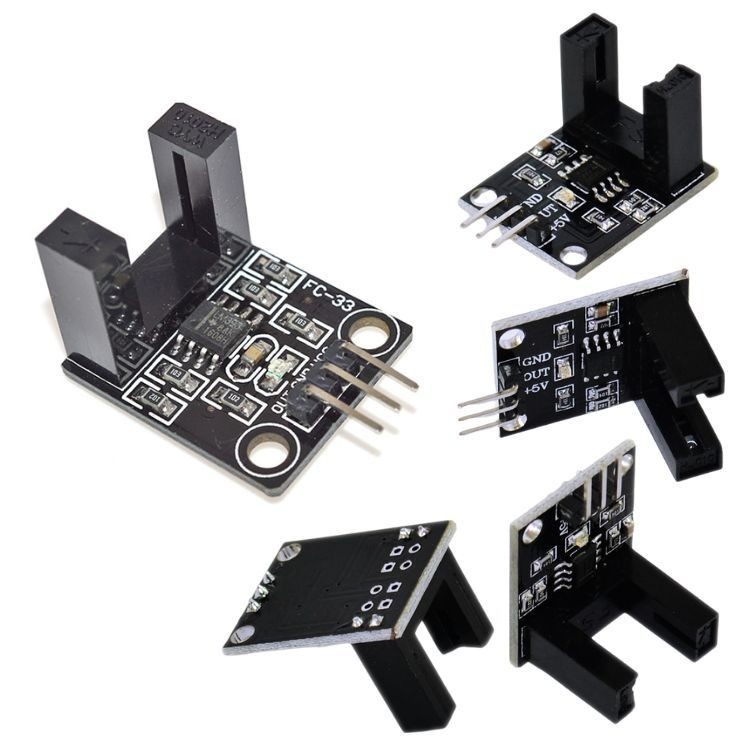

Shenzhen Supplier Correlation Photoelectric Sensor Infrared Radiation Count Module Infrared Sensor
Shenzhen Supplier Correlation Photoelectric Sensor Infrared Radiation Count Module Infrared Sensor
XZH: Your One-Stop ODM/OEM Solution Provider
Product Description
1.Width of optical coupling slot: 10mm.
2.Main chip: LM393, Groove type optocoupler H2010.
3.Working Voltage : DC 5V.
4.Size: 27.6mm*20mm*17mm.
2.Main chip: LM393, Groove type optocoupler H2010.
3.Working Voltage : DC 5V.
4.Size: 27.6mm*20mm*17mm.
