2-in-1 USB-TTL CH340G 32Mb Mega WiFi R3 ESP8266 Development Board Kit with ATmega2560 USB-Compatible
-
Highlight
ATmega2560 ESP8266 Development Board Kit
,ATmega2560 USB-Compatible Development Board Kit
-
DescriptionESP8266 WiFi Mega 2560 R3
-
TypeDevelopment Board
-
Place of OriginChina
-
Brand NameOriginal
-
Model NumberESP8266 WiFi Mega 2560 R3
-
PriceCN¥44.71/pieces >=1 pieces
2-in-1 USB-TTL CH340G 32Mb Mega WiFi R3 ESP8266 Development Board Kit with ATmega2560 USB-Compatible
Product Description
Product Description

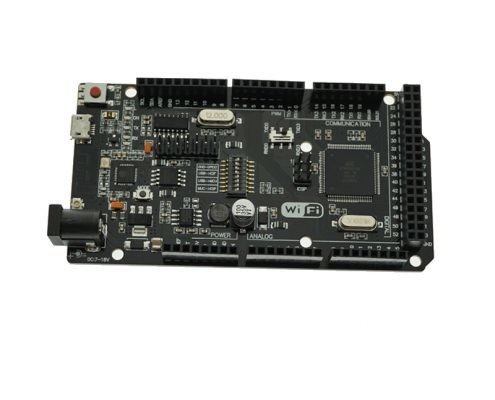

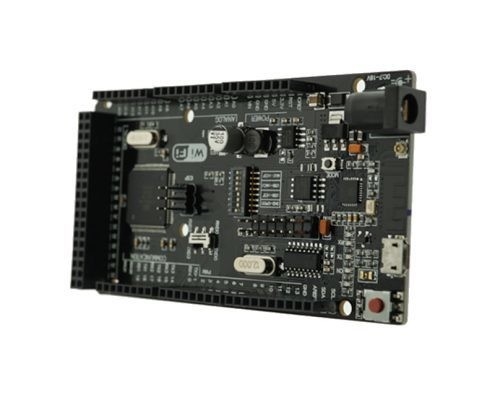

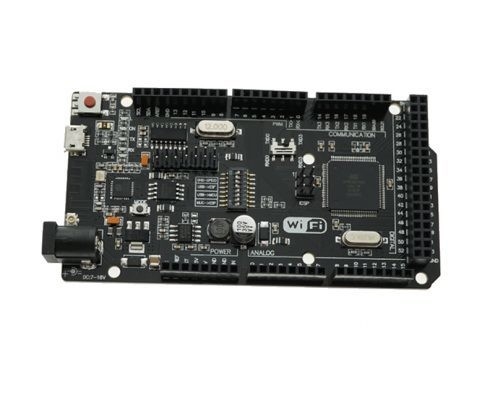

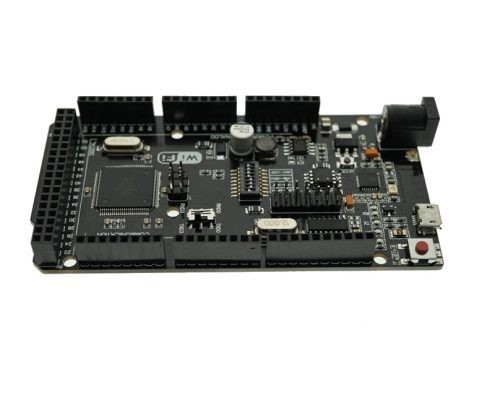

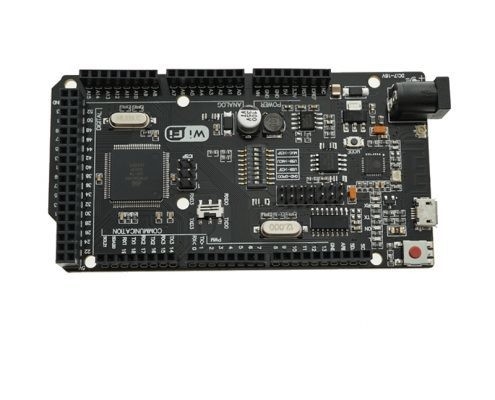

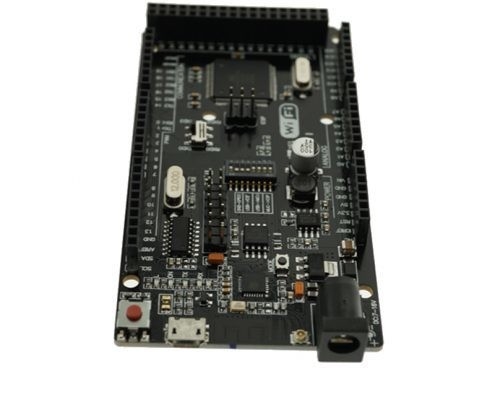

*Full integration on one board: Mega R3 ATmega2560 and WiFi ESP8266 with memory 32Mb (megabit).
*All of the modules can work together or each separately. And everyone has their own pinout headers.
*The convenient solution for the development of new projects requiring Uno and WiFi.
*Via USB you can update sketches and firmware for ATmega2560 and for ESP8266. For this on board have the USB-serial converter
CH340G.
*Use this board is very simple.
*The board has DIP-switch, to connect the modules.
*For example, to USB and ATmeg2560, USB and ESP8266, ATmega2560 and ESP8266.
*All of the modules can work together or each separately. And everyone has their own pinout headers.
*The convenient solution for the development of new projects requiring Uno and WiFi.
*Via USB you can update sketches and firmware for ATmega2560 and for ESP8266. For this on board have the USB-serial converter
CH340G.
*Use this board is very simple.
*The board has DIP-switch, to connect the modules.
*For example, to USB and ATmeg2560, USB and ESP8266, ATmega2560 and ESP8266.
Specification
MCU | ATmega328 |
WIFI MCU | ESP8266 |
USB to serial chip | CH340G |
Operating Voltage | 6-9V |
Input Voltage (recommended) | 7-16V |
DC Current per I/O Pin | 1.5A |
USB Port | Micro USB |
Memory | 32MB |
