DUE R3 Board SAM3X8E 32-Bit Cortex-M3 Control Board Module

DUE R3 Board SAM3X8E 32-Bit Cortex-M3 Control Board Module

Products - Services - PCB Manufacturing Service
  • Highlight

    DUE R3 Control Board Module

    ,

    32-Bit Control Board Module

    ,

    Cortex-M3 DUE R3 Board

  • Description
    DUE R3 AT91SAM3X8E
  • Type
    Development Board
  • Place of Origin
    China
  • Brand Name
    Original
  • Model Number
    DUE R3 AT91SAM3X8E
  • Minimum Order Quantity
    10 pieces
  • Price
    CN¥180.25/pieces >=10 pieces

DUE R3 Board SAM3X8E 32-Bit Cortex-M3 Control Board Module

  • DUE R3 Board SAM3X8E 32-Bit Cortex-M3 Control Board Module
  • DUE R3 Board SAM3X8E 32-Bit Cortex-M3 Control Board Module
  • DUE R3 Board SAM3X8E 32-Bit Cortex-M3 Control Board Module
Get Price Contact Now
Product Description

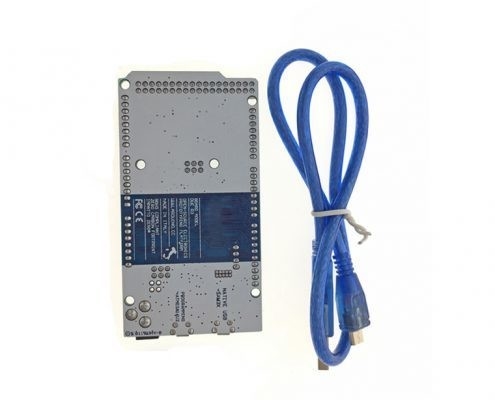

DUE R3 Board SAM3X8E 32-Bit Cortex-M3 Control Board Module 0

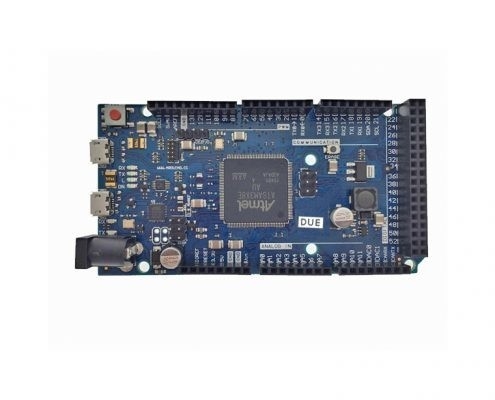

DUE R3 Board SAM3X8E 32-Bit Cortex-M3 Control Board Module 1

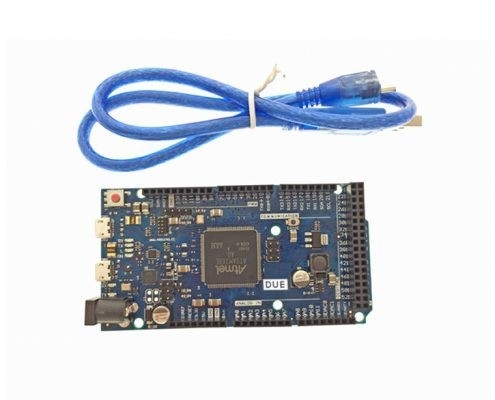

DUE R3 Board SAM3X8E 32-Bit Cortex-M3 Control Board Module 2
Specification
1.Microcontroller: AT91SAM3X8E.
2.Operating Voltage: 3.3V.
3.Recommended Input Voltage: 7-12V.
4.Min-Max Input Voltage: 6-20V.
5.Digital I/O Pins: 54 (of which 12 provide PWM output).
6.Analog Input Pins: 12.
7.Analog Outputs Pins: 2.
8.Total DC Output Current on all I/O lines: 130 mA.
9.DC Current for 3.3V Pin: 800 mA.
10.DC Current for 5V Pin: 800 mA.
11.Flash Memory: 512 KB all available for the user applications.
12.SRAM: 96 KB (two banks: 64KB and 32KB).
13.Clock Speed: 84 MHz.
Type
Development Board
Model Number
DUE R3 AT91SAM3X8E
Place of Origin
China
Port
Shenzhen
Payment
T/T,Paypal
Packing & Delivery
DUE R3 Board SAM3X8E 32-Bit Cortex-M3 Control Board Module 3
DUE R3 Board SAM3X8E 32-Bit Cortex-M3 Control Board Module 4
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
