Inquiry:
1.PCB:Pleasep provide gerber file for detail Quote.
2.PCBA:Please provide gerder file and Bom list.
3.COPY PCB/PCBA:Please provide us the details of PCB.Picture and Sample will be better.

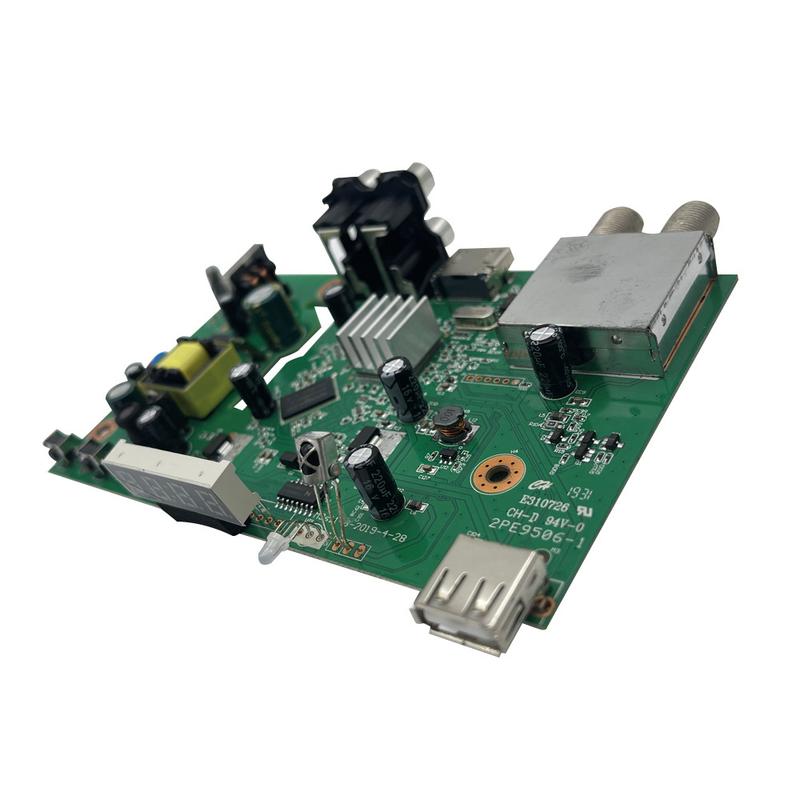

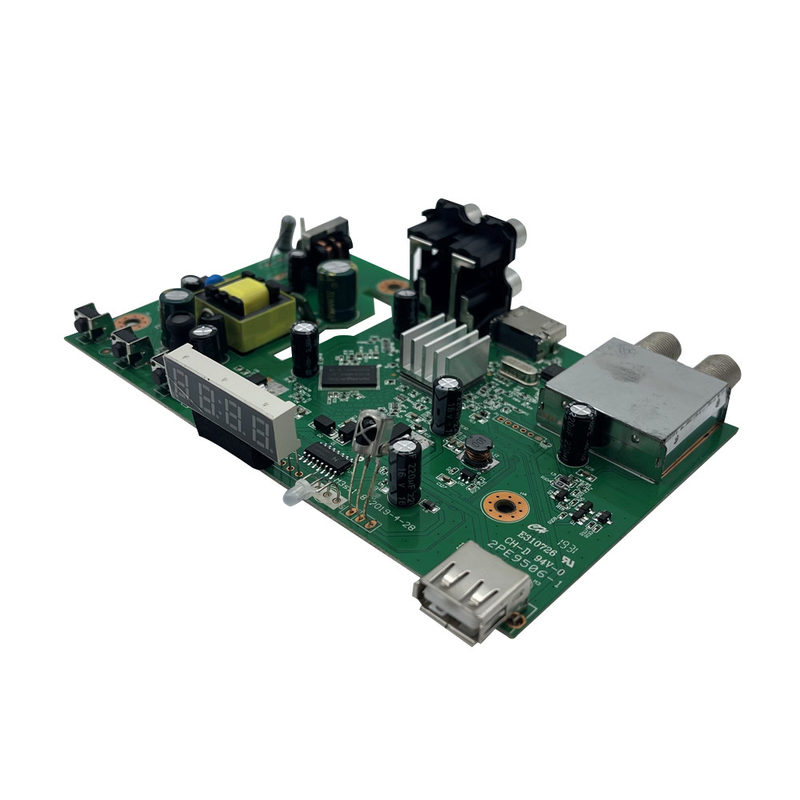

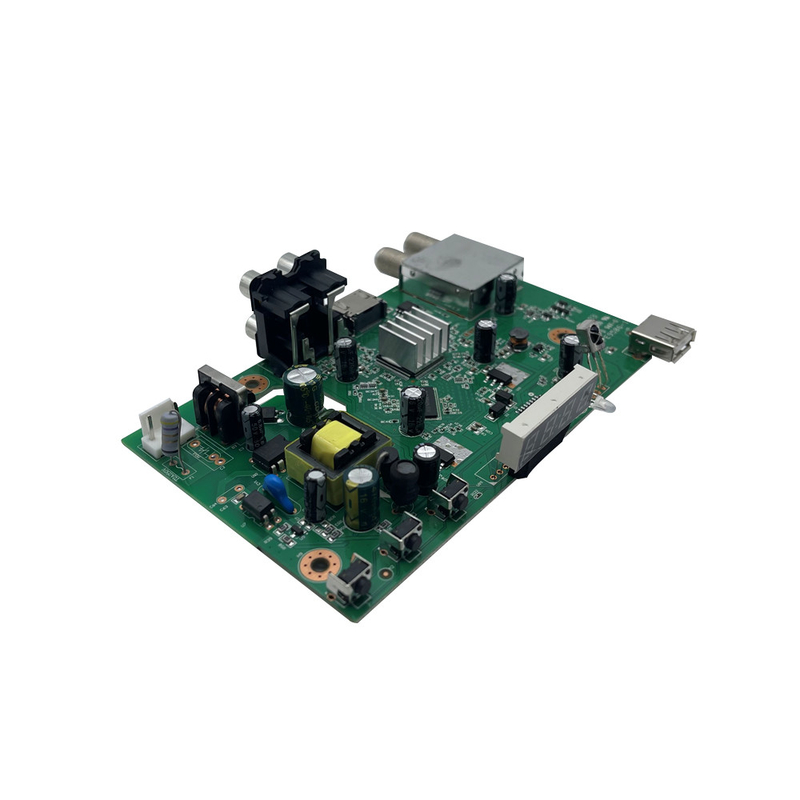

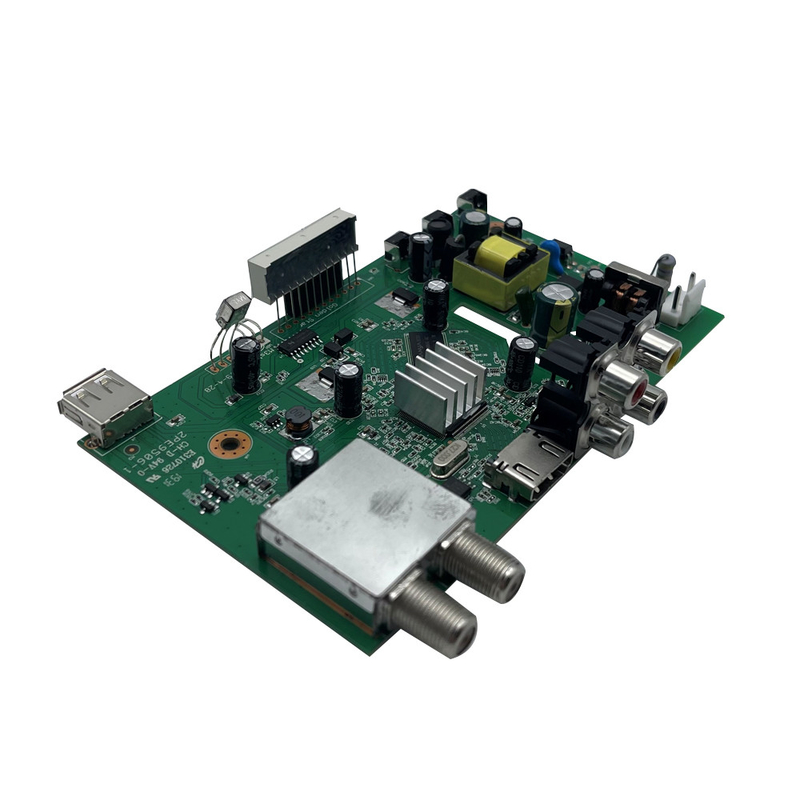

PCB Design/Assembly Circuit Manufacturer OEM PCB Manufacturing Electronic Component Prod Line Charging Ports PCBA
-
Highlight
Electronic Component Prod Line PCB
,OEM PCB Manufacturing
,PCBA PCB Design Assembly
-
TypeConsumer Electronics Pcba
-
Supplier TypePcba Factory
-
Copper Thickness1 Oz, 1/3oz ~6oz
-
Min. Line Width1/2 Oz. Copper .003" +/- .0005" (0.0762mm)
-
Min. Line Spacing1/2 Oz. Copper .003" +/- .0005" (0.0762mm)
-
Surface FinishingHAL, HASL Lead Free, Immersion Gold, Gold Plating, Gold Finger
-
Min. Hole Size0.1mm (4mil)
-
Layer No.1-32 Layers
-
PCB TestFlying Probe And AOI (Default)/Fixture Test
-
Base, Cover Film, Stiffeners Thickness0.5mil, 1.0mil, 2.0mil, 3.0mil, 4.0mil, 5.0mil, 6.0mil,0.10um
-
BGA Ball Pitch1mm ~ 3mm(4mil ~ 12mil)
-
PCB Assembly MethodSMT, Through-hole, Mixed, BGA
-
Place of OriginGuangdong, China
-
Brand NameXZH
-
Model NumberXZH PCBA
-
PriceCN¥108.15/pieces 1-99999 pieces
PCB Design/Assembly Circuit Manufacturer OEM PCB Manufacturing Electronic Component Prod Line Charging Ports PCBA
PCB Design/Assembly Circuit Manufacturer OEM PCB Manufacturing Electronic Component Prod Line Charging Ports PCBA
XZH: Your One-Stop ODM/OEM Solution Provider
Product Description
Base Material | FR-4 / High TG FR-4 / Halogen Free material/Rogers/Arlon/Taconic/Teflon |
Surface treatment | HASL, HASL lead free, Immersion Gold, Immersion Tin, Immersion Silver, Hard gold, Flash gold, OSP… |
Solder mask | Double -sided green LPI ,Also support red , white, yellow, blue , black |
Design file format | Gerber RS -274X, 274D, Eagle , and AutoCAD's DXF , DWG |
Detailed terms for PCB assembly: * Technical requirement: 1. Professional surface-mounting and through-hole soldering technology 2. Various sizes like 1206, 0805, 0603 components SMT technology 3. ICT (in circuit test), FCT (functional circuit test) technology 4. PCB assembly with UL, CE, FCC, RoHS approval 5. Nitrogen gas reflow soldering technology for SMT 6. High standard SMT and solder assembly line 7. High density interconnected board placement technology capacity
Detailed terms for PCB assembly: * Technical requirement: 1. Professional surface-mounting and through-hole soldering technology 2. Various sizes like 1206, 0805, 0603 components SMT technology 3. ICT (in circuit test), FCT (functional circuit test) technology 4. PCB assembly with UL, CE, FCC, RoHS approval 5. Nitrogen gas reflow soldering technology for SMT 6. High standard SMT and solder assembly line 7. High density interconnected board placement technology capacity
Company Profile
XZH Technology Co., Ltd. was founded in 2014, with a perfect quality assurance system and advanced test-analyzed instruments. We have rich experience in the production and development of voice recorders and wireless earphone power banks for many years. Our specialty is in PCBA assembly, suitable for computers, audio devices, home electronic devices, and other precision instruments. We have gained the trust of clients in China and abroad. With the mission of 'Customer Priority and Quality Comes First,' we have passed UL, VDE, CQC, CAS, ISO9001, and ISO1400 certifications.
Certifications
Exhibition
Our Advantages
Recommend Products
Leading Time | Leading Time | |||
Layer | Quick Turn/Usual Time | Mass production | ||
2L | 24hours/ 4-5days | 8-10days | ||
4L | 48hours/ 6-7days | 10-12days | ||
6L | 72hours/ 7-8days | 12-14days | ||
8L | 72hours/ 8-10days | 16-18days | ||
10L | 96hours/ 12-14days | 18-20days | ||
More Information,welcome Email us! | ||||
Q1:Are my design files secure when I send them to you?
A:Your files held in complete safety and security. Your files are never
shared nor will any third parties have access to your design files. Fulltronics can sign a Non-disclosure agreement before sending files.
shared nor will any third parties have access to your design files. Fulltronics can sign a Non-disclosure agreement before sending files.
Q2:For small quantity orders, can you produce prototype PCBs?
A:Yes, XZH PCB can produce prototypes. but the greater the quantity, the greater the cost savings.
Q3:Do you have after-sales product servicing available for your customers?
A:Yes, for any quality problems XZH PCB will take our responsibility to solve them for you at any time. What we can always guarantee is our best service, high quality with competitive price.
Q4:What's files do you need in the PCBA projects?
A:Exclude the pcb file, the PNP(Pick and Place) file and Components Position file also needed.
Q5: Does our product will be tested before shipment?
A: Yes, we could provide Function Circuit Testing if you provide us the testing methods.
