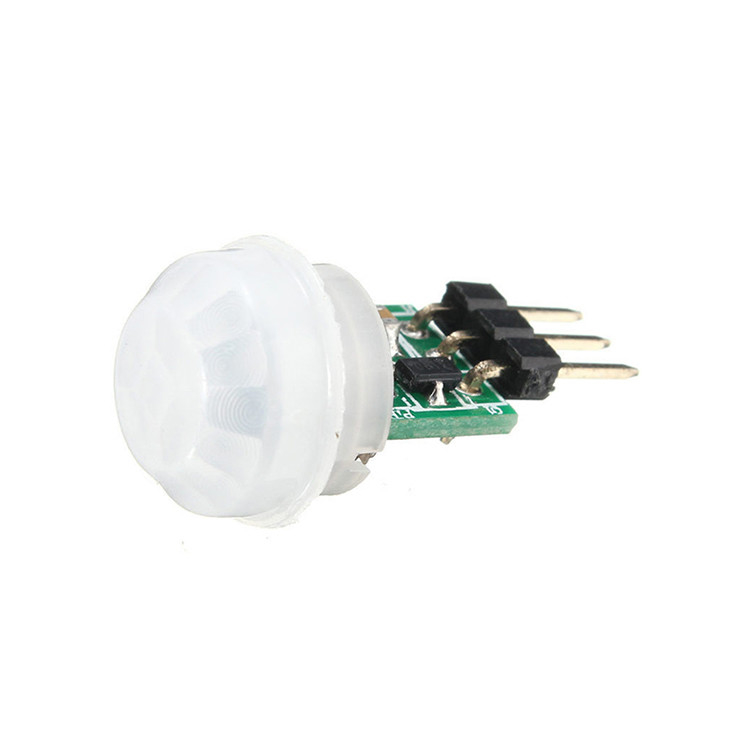

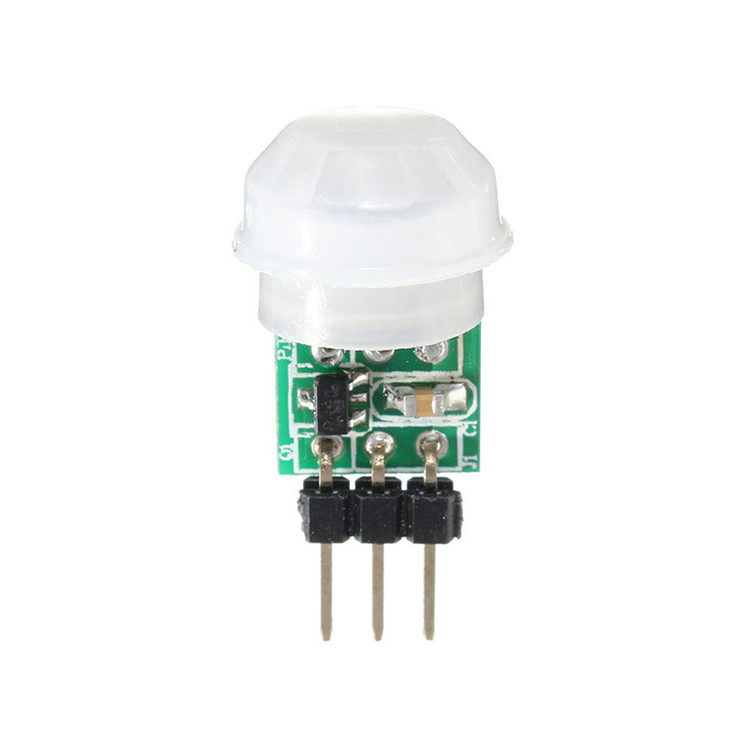

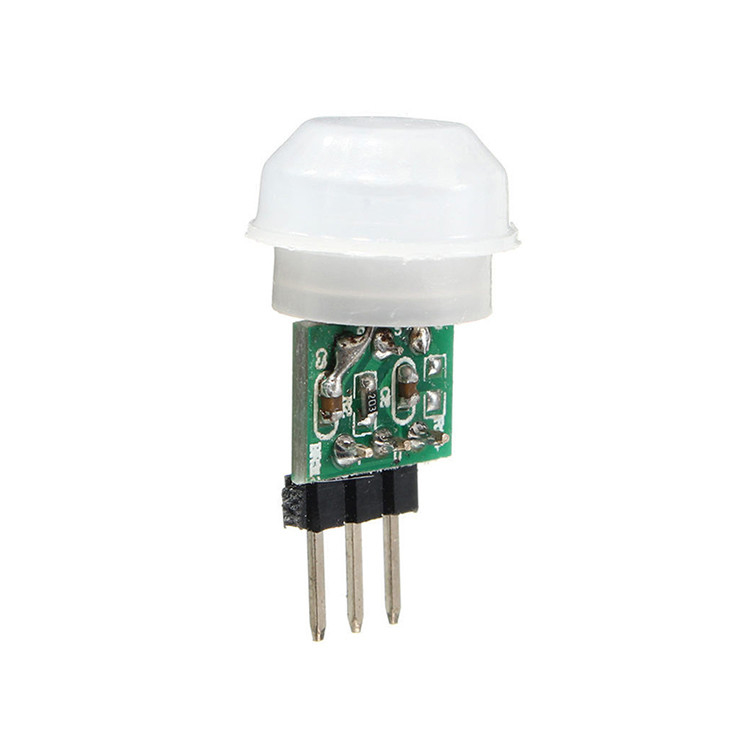

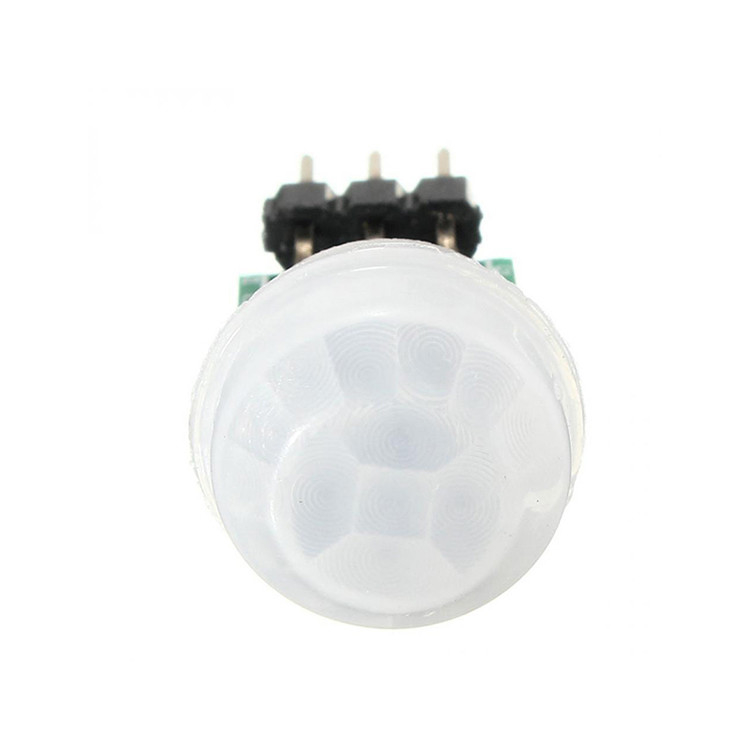

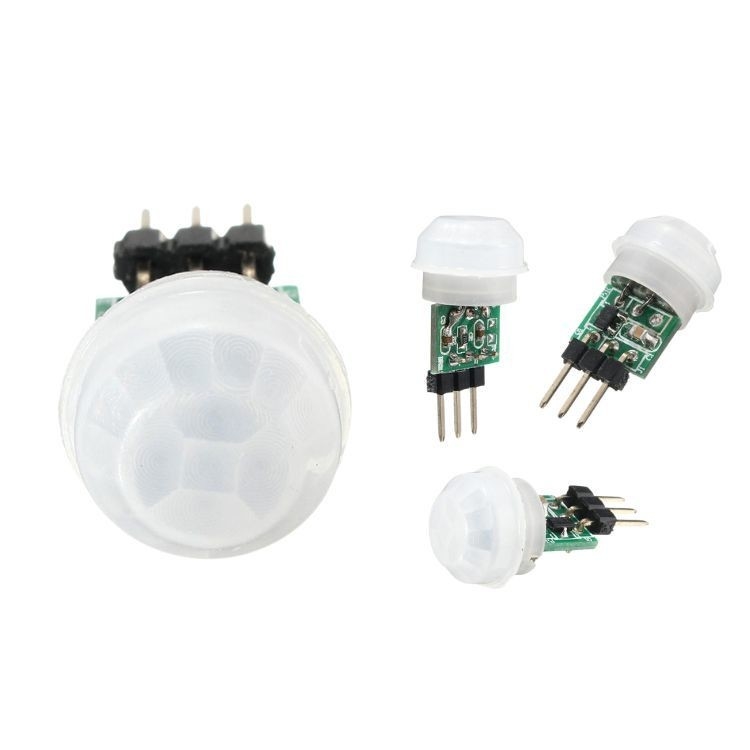

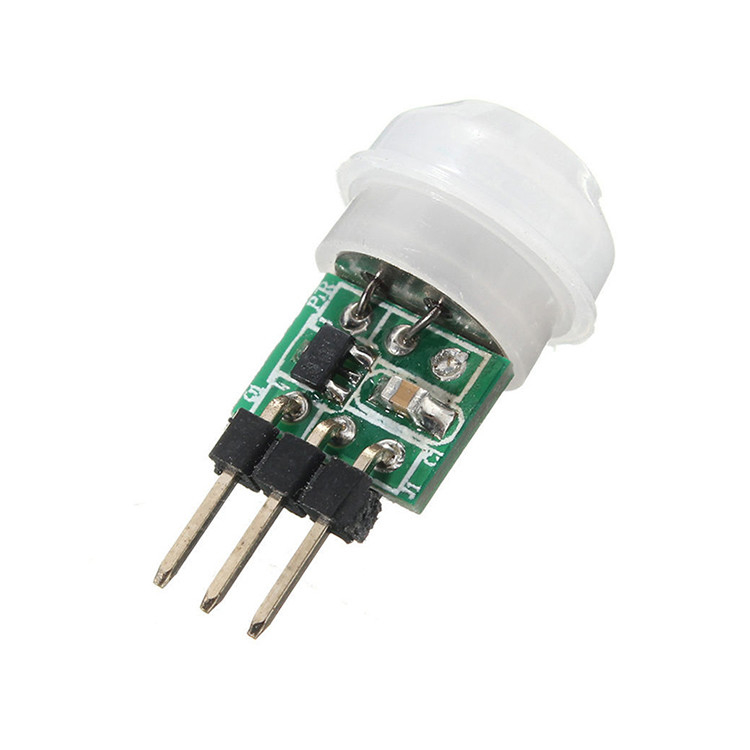

Thermal Sensor Mini IR Infrared Pyroelectric PIR Body Motion Human Sensor Detector Module Micro am312 pir sensor
-
Highlight
Micro am312 pir sensor
,Human Sensor Detector Module
,Thermal Sensor Mini IR
-
FeaturesAm312 Pir Sensor Module
-
SeriesAm312 Pir Sensor
-
Mounting TypeStandard
-
DescriptionAm312 Pir Sensor, Am312 Pir Sensor
-
Manufacturing Date Code114504202
-
TypeMotion & Position Sensor
-
UseMicro Controller
-
Theory-
-
OutputDC 2.7-12V
-
Working VoltageDC 2.7-12V
-
Static Power Consumption<0.1mA
-
Delay Time2 Seconds
-
The Blocking Time2 Seconds
-
TriggerCan Be Repeated
-
Sensing Range≤100 Degree Cone Angle, 3-5 M;
-
Working Temperature-20 ~ + 60℃
-
PCB Dimensions10mm X 8mm
-
Total SizeApprox. 12mm X 25 Mm
-
Module LensSmall Lens
-
Place of OriginGuangdong, China
-
Brand NameXZH
-
Model Number312
-
Minimum Order Quantity10 pieces
-
PriceCN¥3.61/pieces 10-999 pieces
Thermal Sensor Mini IR Infrared Pyroelectric PIR Body Motion Human Sensor Detector Module Micro am312 pir sensor
Thermal Sensor Mini IR Infrared Pyroelectric PIR Body Motion Human Sensor Detector Module Micro am312 pir sensor
XZH: Your One-Stop ODM/OEM Solution Provider
Product Description
* Body induction lamps
* Body sensors toys
* Security Products
* Industrial automation and control
* Auto-sensing of electrical equipment
* Battery-powered automatic control
* Body sensors toys
* Security Products
* Industrial automation and control
* Auto-sensing of electrical equipment
* Battery-powered automatic control
*Mini IR pyroelectric infrared PIR motion human sensor automatic detector module
*Based on the digital intelligent infrared technology
*Automatic control
*High sensitivity and high reliability
*Widely used in various auto-sensing electrical equipment
*Immunity enhancement, internal use of digital signal processing, direct high-low output
*Repeatable trigger: the sensor output high after the delay period, if there is human activity in its sensing range,the output
will remain high until the people left after the delay, it becomes low (sensor module detects the human body every activity will
be automatically extended a period of time delay, and to the last activity time as the starting point of the delay time)
