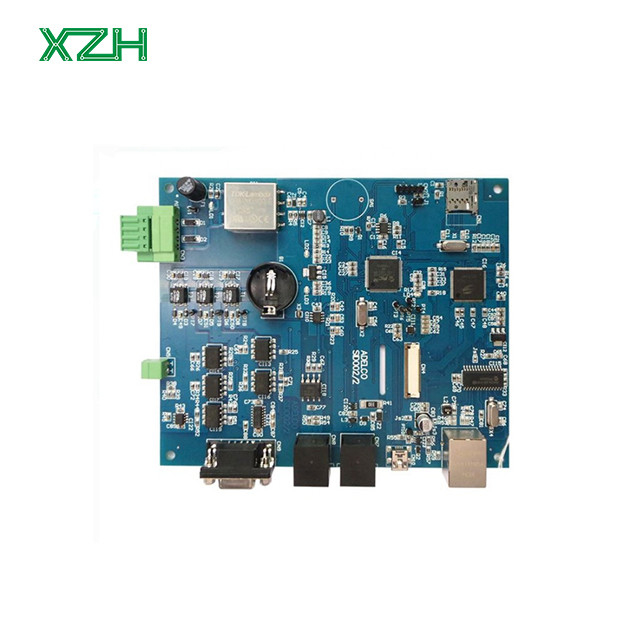

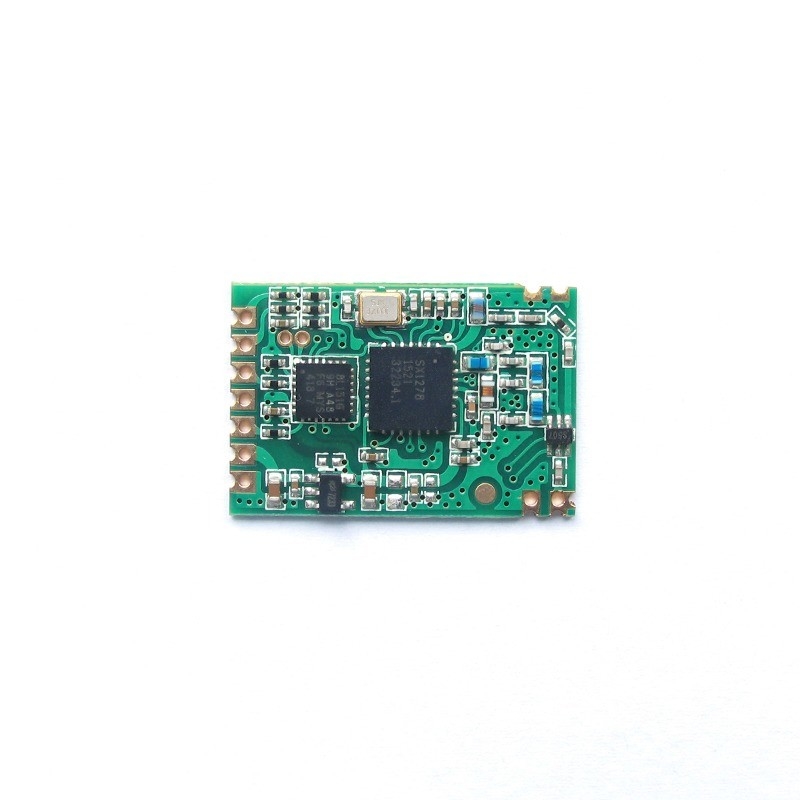

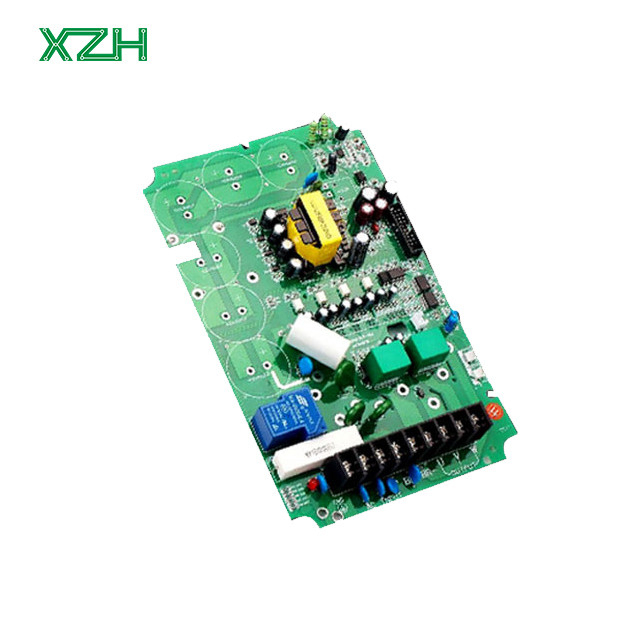

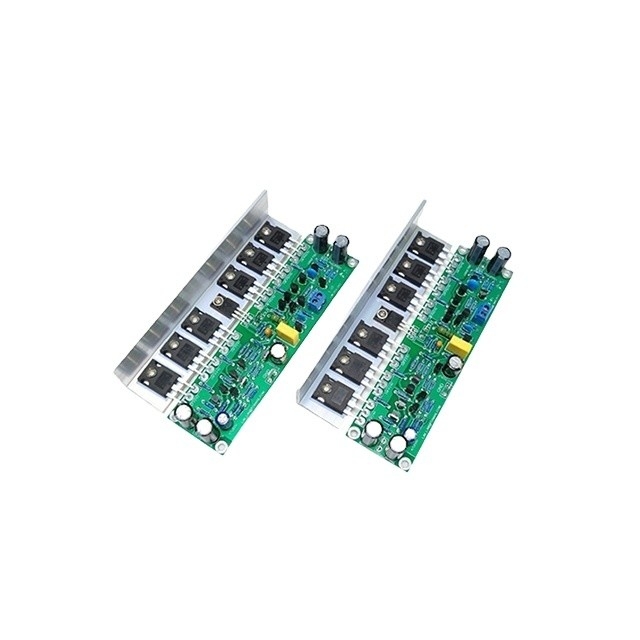

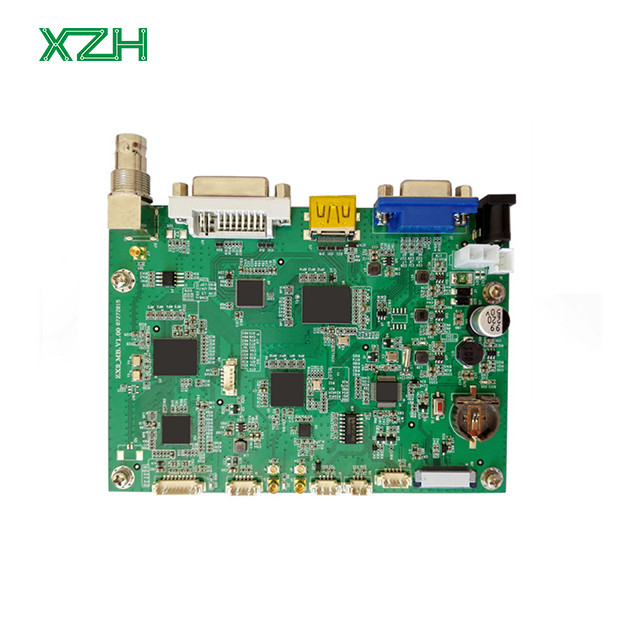

Professional One-Stop Custom Oem Pcb Pcba Board Service Manufacturers Electronics Pcb Boards Prototype Pcba Assembly
-
Highlight
Electronics Pcb Boards
,Prototype Pcba Assembly
,Professional One-Stop Custom Oem Pcb
-
TypeConsumer Electronics Pcba
-
Supplier TypeCustomized
-
Copper Thickness1 Oz
-
Layers1-58 Layers
-
CertificateISO TS16949
-
Surface TreatmentHASL, HASL LF, Etc.
-
Solder MaskDouble -sided Green LPI/ Customized
-
File NeededGerber.etc
-
ApplicationElectronic Devices
-
MaterialFR-4 / High TG FR-4 / Halogen Free.etc
-
ServiceOffer PCBA Design
-
Place of OriginGuangdong, China
-
Brand NameXZH
-
Model NumberPCBA-155
-
PriceCN¥7.21/pieces 1-99 pieces
Professional One-Stop Custom Oem Pcb Pcba Board Service Manufacturers Electronics Pcb Boards Prototype Pcba Assembly
Professional One-Stop Custom Oem Pcb Pcba Board Service Manufacturers Electronics Pcb Boards Prototype Pcba Assembly
XZH: Your One-Stop ODM/OEM Solution Provider
Product Introduction
Base material | FR4,High-TG FR4,CEM3,aluminum, High Frequencey frequency(Rogers,Taconic,Aron,PTFE,F4B) |
Layers | 1-4 Layers(Alunimum), 1-32 layers(FR4) |
Copper Thickness | 0.5oz, 1oz, 2oz, 3oz,4oz |
Dielectric Thickness | 0.05mm, 0.075mm, 0.1mm,0.15mm,0.2mm |
board Core Thickness | 0.4mm,0.6mm, 0.8mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm, 3.0mm and 3.2mm |
Board Thickness | 0.4mm - 4.0mm |
Thickness Tolerance | +/-10% |
Aluminum Machining | Drilling, Tapping, Milling, Routing, Die-Punching, Break-off tab available |
Min Hole | 0.2 mm |
Min Track Width | 0.2mm (8mil) |
Min Track Gap | 0.2mm (8mil) |
Min SMD Pad Pitch | 0.2mm (8mil) |
Surface Finishing | HASL lead free,ENIG,Plated Gold,Immersion Gold,OSP |
Solder Mask Color | Green, Blue, Black, White, Yellow, Red, Matt Green, Matt Black, Matt Blue |
Legend Color | Black, White etc |
Assembly Types | Surface mount Thro-hole Mixed technology (SMT & Thru-hole) Single or double sided placement Conformal coating Shield cover assembly for EMI emission control |
Parts Procurement | Full Turnkey Partial Turnkey Kitted/Consigned |
Component types | SMT 01005 or larger BGA 0.4mm pitch, POP (Package on Package) WLCSP 0.35mm pitch Hard metric connectors Cable & wire |
SMT Parts Presentation | Bulk Cut tape Partial reel Reel Tube Tray |
Stencils | Laser-cut stainless steel |
Other Techniques | Free DFM Review Box Build Assembly 100% AOI test and X-ray test for BGA IC programming Components cost-down Function test as custom Protection technology |
PCB Service
XZH Supply single-side, double –side board, multilayer boards (1-20 layers), Boards type:Rigid PCB(CEM, FR4), Flexible PCB, Rigid-Flex PCB, MCPCB(Aluminum PCB), Ceramic PCB, RF PCB, etc.
PCB Assembly&Components Sourcing
XZH offer Printed Circuit Board Assembly ,components Sourcing and complete solutions. what we can always gurantee is the best quality,competitive price and best service.
More Details or Other requirements welcome to Email and Chat with us.
Company Profile
XZH Technology Co., Ltd. was founded in 2014, with a perfect quality assurance system and advanced test-analyzed instruments. We have rich experience in the production and development of voice recorders and wireless earphone power banks for many years. Our specialty is in PCBA assembly, suitable for computers, audio devices, home electronic devices, and other precision instruments. We have gained the trust of clients in China and abroad. With the mission of 'Customer Priority and Quality Comes First,' we have passed UL, VDE, CQC, CAS, ISO9001, and ISO1400 certifications.
Certifications
Exhibition
Our Advantages
Product Leading Time
Sample Lead time | Mass production lead time | |||
Single sided PCB | 1~3 days | 4~7 days | ||
Double sided PCB | 2~5 days | 7~10 days | ||
Multilayer PCB | 7~8 days | 10~15 days | ||
PCB Assembly | 8~15 days | 2~4 weeks | ||
Delivery time | 3-7 days | 3-7 days | ||
Package: Anti-static Package with carton | ||||
FAQ
Q1:Are my design files secure when I send them to you?
A:Your files held in complete safety and security. Your files are never
shared nor will any third parties have access to your design files. Fulltronics can sign a Non-disclosure agreement before sending files.
shared nor will any third parties have access to your design files. Fulltronics can sign a Non-disclosure agreement before sending files.
Q2:For small quantity orders, can you produce prototype PCBs?
A:Yes, XZH PCB can produce prototypes. but the greater the quantity, the greater the cost savings.
Q3:Do you have after-sales product servicing available for your customers?
A:Yes, for any quality problems XZH PCB will take our responsibility to solve them for you at any time. What we can always guarantee is our best service, high quality with competitive price.
Q4:What's files do you need in the PCBA projects?
A:Exclude the pcb file, the PNP(Pick and Place) file and Components Position file also needed.
Q5: Does our product will be tested before shipment?
A: Yes, we could provide Function Circuit Testing if you provide us the testing methods.
