Highlight

ahd camera board pcba
,
smt mini computer pcba
,
wireless charger circuit pcba
Type

Consumer Electronics Pcba
Supplier Type

PCB Factory
Base Material

FR4
Copper Thickness

1oz
Board Thickness

1.6mm
Min. Hole Size

0.15MM
Min. Line Width

0.1mm4mil)
Min. Line Spacing

4/4mil(0.1/0.1mm)
Surface Finishing

HASL Lead Free
Product Name

PCB Manufacturing
Number Of Layers

1-58 Layers
Solder Mask Color

White.Black.Yellow.Green.Red.Blue
Port

Shenzhen
Place of Origin

Guangdong, China
Brand Name

XZH PCBA
Model Number

XZH PCB
Price

CN¥7.21/pieces >=1 pieces
Supply Ability

300000 Piece/Pieces per Week

wireless charger circuit usb flash drive smt mini computer led car charger ahd camera board pcba

Name: wireless charger circuit usb flash drive smt mini computer led car charger ahd camera board pcba
Brand: Shenzhen XinZhanHong Technology Co., Ltd.
SKU: XZH PCB
Price: 4.00 USD
Availability: InStock

button button

Get Price Contact Now

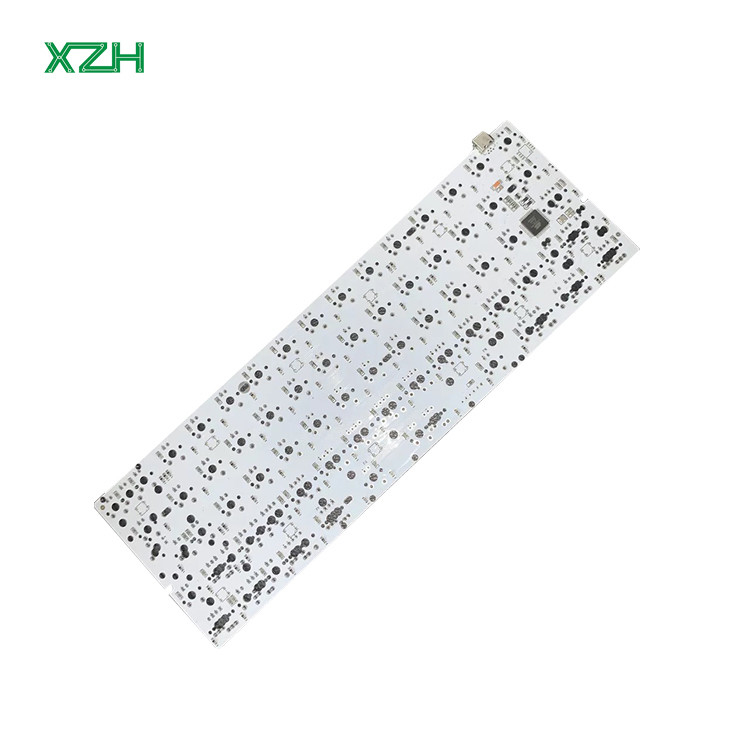

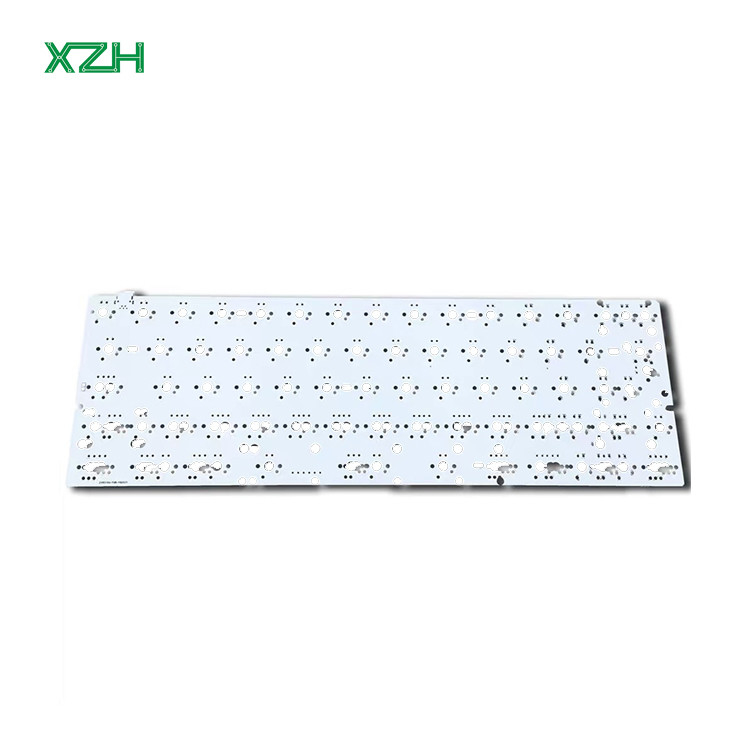

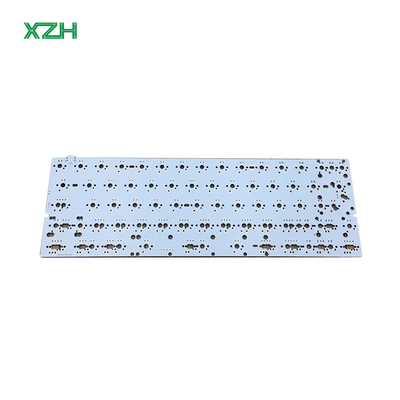

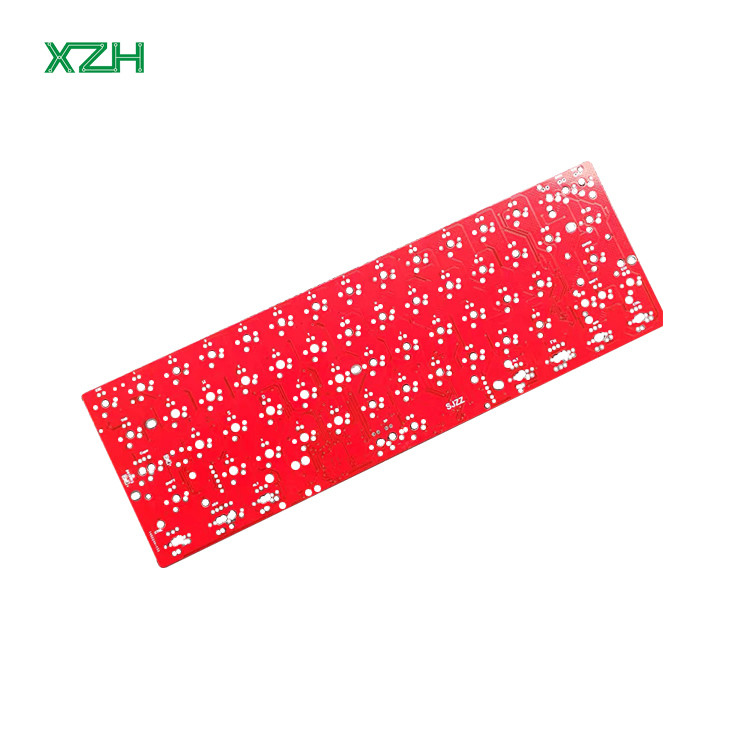

Custom OEM Keyboard PCB PCBA for Mechanical Keyboard PCB Circuit

PCBA Technical Capacity

SMT	Position accuracy:20 um
		Components size:0.4×0.2mm(01005) —130×79mm,Flip-CHIP,QFP,BGA,POP
		Max. component height::25mm
		Max. component height::25mm
		Max. PCB size:680×500mm
		Min. PCB size: no limited
		PCB thickness:0.3 to 6mm
Wave-Solder	Max. PCB width:450mm
		Min. PCB width: no limited
		Component height:Top 120mm/Bot 15mm
Sweat-Solder	Metal type :part, whole, inlay, sidestep
		Metal material:Copper , Aluminum
		Surface Finish:plating Au, plating sliver , plating Sn
		Air bladder rate:less than20%
Testing	ICT,Probe flying,burn-in,function test,temperature cycling,AXI – 2D and 3D automated X-ray inspection, AOI – automated optical inspection

Details for PCB &PCBA

Base material	FR4,High-TG FR4,CEM3,aluminum, High Frequencey frequency(Rogers,Taconic,Aron,PTFE,F4B)
Layers	1-4 Layers(Alunimum), 1-32 layers(FR4)
Aluminum Machining	Drilling, Tapping, Milling, Routing, Die-Punching, Break-off tab available
Min SMD Pad Pitch	0.2mm (8mil)
Surface Finishing	HASL lead free,ENIG,Plated Gold,Immersion Gold,OSP
Solder Mask Color	Green, Blue, Black, White, Yellow, Red, Matt Green, Matt Black, Matt Blue
Legend Color	Black, White etc
Assembly Types	Surface mount Thro-hole Mixed technology (SMT & Thru-hole) Single or double sided placement Conformal coating Shield cover assembly for EMI emission control
Component types	SMT 01005 or larger BGA 0.4mm pitch, POP (Package on Package) WLCSP 0.35mm pitch Hard metric connectors Cable & wire
Stencils	Laser-cut stainless steel

Product Leading Time

	Sample Lead time	Mass production lead time
Single sided PCB	1~3 days	4~7 days
Double sided PCB	2~5 days	7~10 days
Multilayer PCB	7~8 days	10~15 days
PCB Assembly	8~15 days	2~4 weeks
Delivery time	3-7 days	3-7 days
Package: Anti-static Package with carton

Customer Services

PCB Service

XZH Supply single-side, double –side board, multilayer boards (1-20 layers), Boards type:Rigid PCB(CEM, FR4), Flexible PCB, Rigid-Flex PCB, MCPCB(Aluminum PCB), Ceramic PCB, RF PCB, etc.

PCB Assembly&Components Sourcing

XZH offer Printed Circuit Board Assembly ,components Sourcing and complete solutions. what we can always gurantee is the best quality,competitive price and best service.

More Details or Other requirements welcome to Email and Chat with us.

FAQ

Q1.What is needed for PCB PCBA quotation?

A: PCB: Quantity, Gerber file and Technic requirements(material,surface finish treatment, copper thickness,board thickness ,...)PCBA: PCB information, BOM, (Testing documents...) Q2. What file formats do you accept for PCB PCBA production?

A: Gerber file: CAM350 RS274X PCB file: Protel 99SE, P-CAD 2001 PCB BOM: Excel (PDF,word,txt) Q3. Are my files safe?

A: Your files are held in complete safety and security.We protect the intellectual property for our customers in the whole process.. All documents from customers are never shared with any third parties. Q4. MOQ?

A: There is no MOQ in XZH.We are able to handle Small as well as large volume production with flexibility. Q5.Shipping cost?

A: The shipping cost is determined by the destination, weight, packing size of the goods. Please let us know if you need us to quote you the shipping cost.
