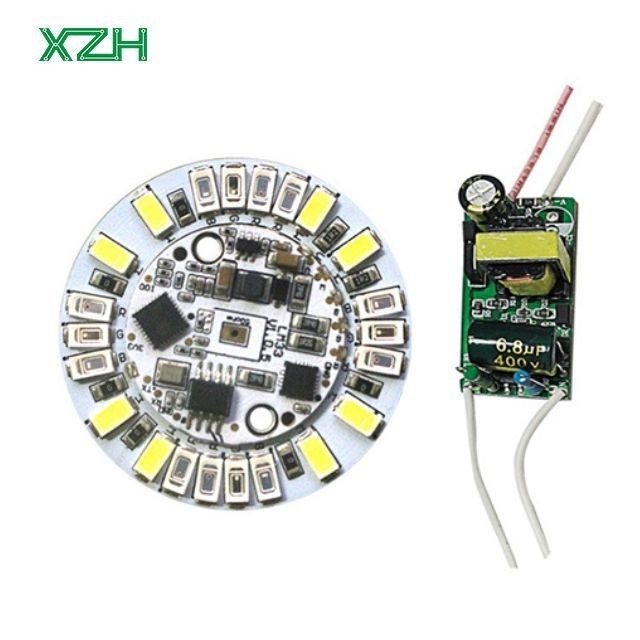

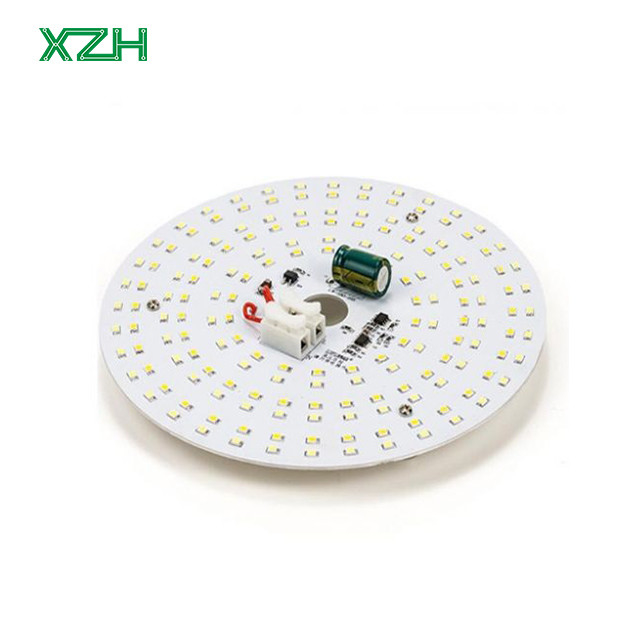

Green Solder Mask Color LED PCBA with 0.8mm Min. Silkscreen Text Height and Hard Gold Finger Surface Treatment

Product Description:

The LED PCBA product is designed to provide a reliable and cost-effective solution for your needs. It is a PCB PCBA prototype that is perfect for use in various applications, including Industrial High Bay LED Lights, DOB LED Light, and AC COB LED.

The LED PCBA product is designed to meet the IPC-A-610 D/IPC-III standard, ensuring that it is of the highest quality. It is made with hard gold finger surface treatment, which makes it highly resistant to corrosion and wear.

The LED PCBA product is a highly versatile product that can be customized to meet your specific needs. It is designed to provide a high level of efficiency, reliability, and performance.

Our team of experts is dedicated to providing you with the best possible service. We offer a wide range of services, including design, development, prototyping, and production. We work closely with you to ensure that your needs are met and that you are satisfied with the final product.

So if you are looking for a high-quality LED PCBA product, look no further than our company. We offer a range of solutions that are designed to meet your specific needs and provide you with the best possible product.

Features:

• Product Name: LED PCBA
• Layer: 2
• Solder Mask: Double-sided Green LPI/ Customized
• Surface Treatment: Hard Gold Finger
• SMT Efficiency: BGA.QFP.SOP.QFN.PLCC.CHIP
• Port: Shenzhen
• Features: Custom LED PCB, Chip LED Cob, COB LED Chip

Technical Parameters:

Applications:

The AC COB LED is a perfect match for the xzh LED PCBA product as it provides a high-quality and reliable light source. The AC COB LED is a type of LED chip that can be driven directly by AC power without requiring a converter. This makes it ideal for use in lighting applications where space is limited or where a converter would be impractical.

The xzh LED PCBA product can be used in COB LED modules, which are a type of LED module that uses multiple COB LED chips to produce a high-quality light output. These modules are ideal for use in applications where high light output is required, such as in commercial lighting or outdoor lighting applications.

Another application of the xzh LED PCBA product is in AC LED modules. AC LED modules are similar to COB LED modules but use AC COB LED chips instead of traditional DC LED chips. These modules are ideal for use in applications where high efficiency and long life are important, such as in street lighting or indoor lighting applications.

In summary, the xzh LED PCBA product model 0011 is a versatile and reliable PCB that is suitable for a variety of applications and scenarios. It is compatible with AC COB LED chips, COB LED modules, and AC LED modules, making it an ideal choice for many different lighting applications.

Customization:

Our product customization services for COB LED, Bus LED Screen, and Driverless LED PCB include:

• Brand Name: xzh
• Model Number: 0011
• Min. Line Spacing: 0.1mm
• Solder Mask: Double-sided Green LPI/ Customized
• SMT Efficiency: BGA.QFP.SOP.QFN.PLCC.CHIP
• Solder Mask Color: Green
• Surface Finishing: OSP, Gold Plating, Immersion Gold

Support and Services:

Our LED PCBA product comes with comprehensive technical support and services to ensure optimal performance and customer satisfaction. Our team of experienced technicians and engineers are available to provide assistance with product installation, setup, and troubleshooting. We offer remote support via phone or email, as well as on-site support for more complex issues. In addition, we provide regular software updates and maintenance to keep our product up-to-date and functioning at its best. Our goal is to provide fast and effective support to minimize any downtime and ensure that our customers' needs are always met.

Packing and Shipping:

Product Packaging:

• The LED PCBA product will be securely packed in an anti-static bag.
• The anti-static bag will be placed in a cardboard box.
• The cardboard box will have cushioning material to prevent any damage during transportation.

Shipping:

• We ship all our LED PCBA products via reliable and trusted shipping carriers.
• Shipping times vary depending on the destination, but in general, we ship out orders within 2-3 business days.
• We provide tracking information so you can keep an eye on the status of your shipment.
• If you have any specific shipping requirements or requests, please let us know and we will do our best to accommodate them.

FAQ:

Q: What is the brand name of this product?

A: The brand name of this product is xzh.

Q: What is the model number of this product?

A: The model number of this product is 0011.

Q: What is the power consumption of this LED PCBA?

A: The power consumption of this LED PCBA is 5 watts.

Q: What is the voltage range of this LED PCBA?

A: The voltage range of this LED PCBA is 12V-24V.

Q: How many LEDs are there in this PCBA?

A: There are 30 LEDs in this PCBA.
