Our LED PCBA product comes with a minimum silkscreen text height of 0.8mm, ensuring that all text and symbols on the PCB are highly visible and easy to read. The solder mask color is green, which is the industry standard and provides excellent protection to the PCB from external factors.
Our LED PCBA product is manufactured to IPC-A-610 D/IPC-III standard, ensuring that the product is of high quality and consistency. The product is designed to meet the requirements of various applications, making it a versatile choice for anyone looking for a reliable LED PCB and PCBA.
Our LED PCBA product also comes with various surface finishing options such as OSP, gold plating, and immersion gold. These surface finishes provide excellent electrical performance and ensure long-lasting functionality.
The LED PCBA product is designed to provide high-quality performance for a range of applications such as COB LED Module, industrial LED high bay light, and bus LED screen. The product is reliable, efficient, and provides excellent circuitry for LED-based products.

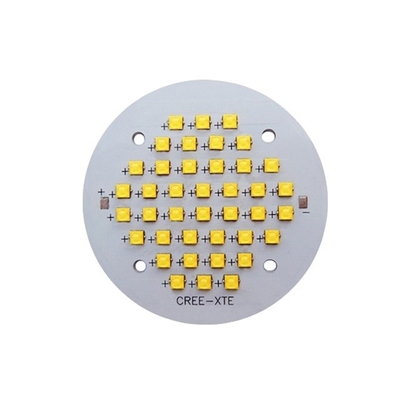

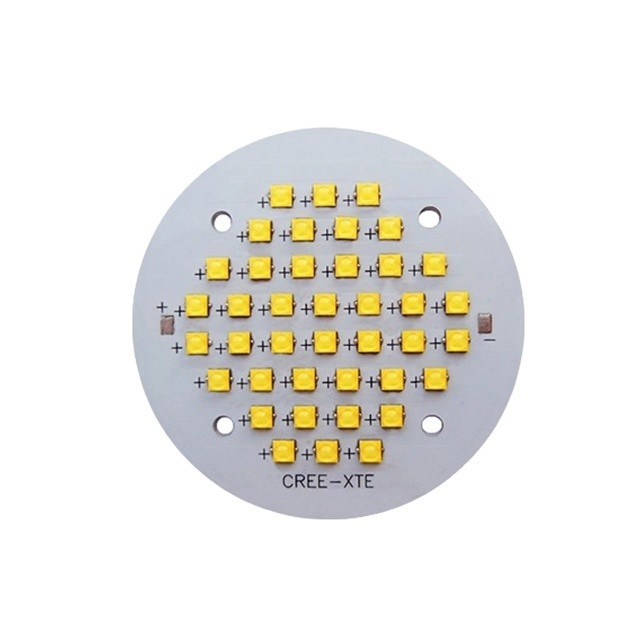

| Product Name | DOB LED Light PCBA Prototype |
| PCB Type | Double-sided |
| Layers | 2 |
| SMT Efficiency | BGA, QFP, SOP, QFN, PLCC, CHIP |
| Min. Line Spacing | 0.1mm |
| Surface Finishing | OSP, Gold Plating, Immersion Gold |
| Min. Silkscreen Text Height | 0.8mm |
| Min. Silkscreen Line Width | 0.15mm |
| Surface Treatment | Hard Gold Finger |
| PCB Standard | IPC-A-610 D/IPC-III Standard |
| Surface Finish | HASL |
| LED Type | COB LEDs |
| LED Screen Type | Bus LED Screen |
This LED PCBA product is perfect for use in various commercial and industrial applications. For instance, it is ideal for use in Commercial LED High Bay Lighting. The LED PCBA is designed to provide high illumination and is perfect for lighting up large indoor spaces such as warehouses, factories, and commercial buildings. Its high SMT efficiency ensures that it can deliver optimal performance and brightness for prolonged periods.
Another great application of the XZH 0011 LED PCBA is in Industrial High Bay LED Lighting. The product has been designed to be highly reliable and long-lasting, which makes it perfect for use in industrial settings. Its ability to withstand harsh environmental conditions and high temperatures makes it ideal for use in factories, warehouses, and other industrial settings.
Additionally, the XZH 0011 LED PCBA is perfect for use in other commercial LED high bay lighting applications. This high-quality product is designed to provide optimal performance and is ideal for illuminating large spaces such as airports, train stations, and shopping malls. Its high SMT efficiency and hard gold finger surface treatment make it highly reliable and long-lasting, ensuring that it can deliver optimal performance for an extended period.
In conclusion, the XZH 0011 LED PCBA is a high-quality product that is perfect for a wide range of applications. Its versatility and high SMT efficiency make it ideal for use in various commercial and industrial settings, including Commercial LED High Bay Lighting, Industrial High Bay LED Lighting, and other applications that require high-quality LED lighting solutions.
Our LED PCBA product comes with the following technical support and services:
Product Packaging:
Shipping:
Q: What is the brand name of the LED PCBA product?
A: The brand name is xzh.
Q: What is the model number of the LED PCBA product?
A: The model number is 0011.
Q: What is the input voltage range for the LED PCBA product?
A: The input voltage range is 12V DC.
Q: What is the maximum power consumption of the LED PCBA product?
A: The maximum power consumption is 5 watts.
Q: What is the expected lifespan of the LED PCBA product?
A: The expected lifespan is 50,000 hours.
