Solar Traffic Light Controller Board 2.4G Wireless Synchronous Transmission

Solar Traffic Light Controller Board 2.4G Wireless Synchronous Transmission

  • High Light

    Solar Traffic Light Controller Board

    ,

    Traffic Light Controller Board Wireless

  • Type
    Controller Board
  • Supplier Type
    OEM/ODM
  • Copper Thickness
    1 Oz
  • Product Name
    Solar Circuit Board
  • Keywords
    Solar Circuit Board
  • Service
    One-stop Turnkey
  • MOQ
    1 PCS
  • Application
    Road Traffic
  • Certificate
    ROSH. ISO9001. UL
  • Testing Service
    100% E-testing
  • PCBA Service
    OEM ODM PCBA Customized
  • Color
    Customized Color
  • Package
    Standard Package
  • Place of Origin
    Guangdong, China
  • Brand Name
    XZH
  • Model Number
    XZH 1001
  • Minimum Order Quantity
    10 pieces
  • Price
    $5.00/pieces 10-99 pieces

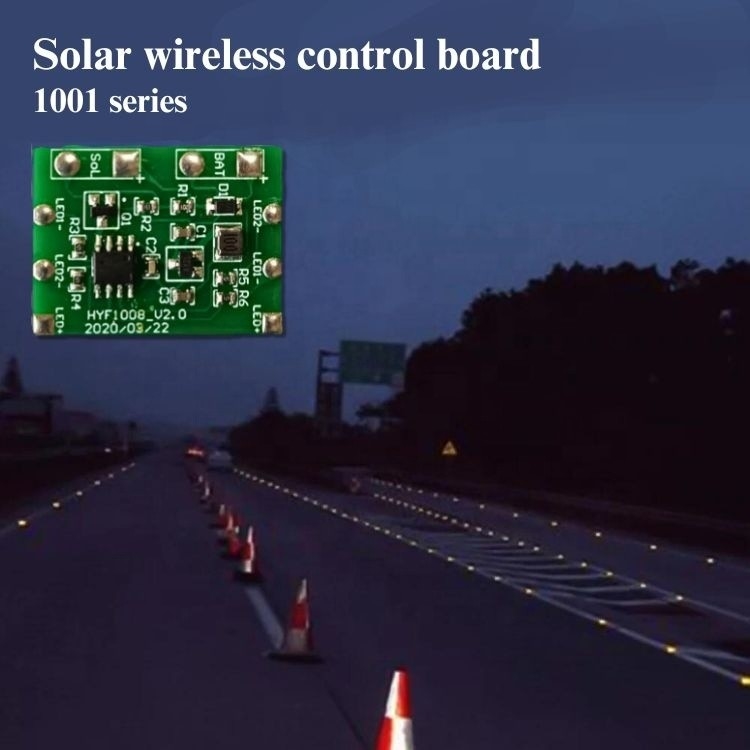

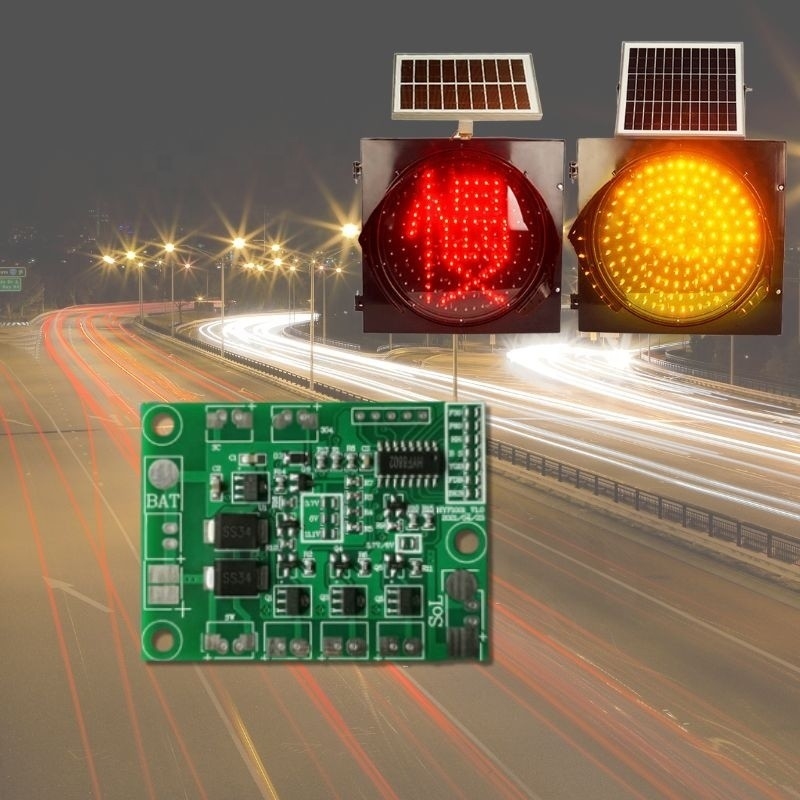

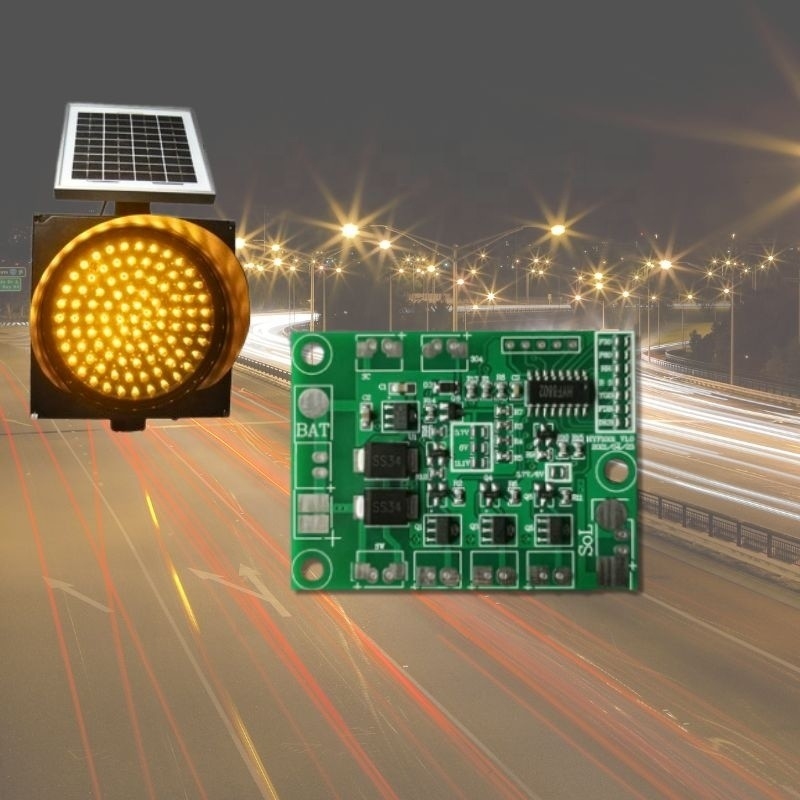

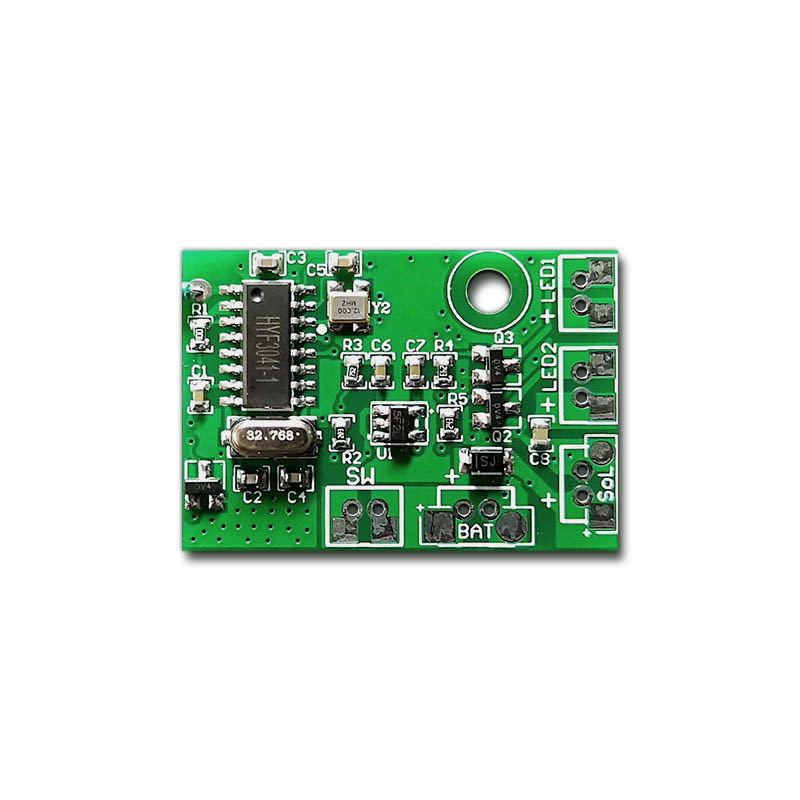

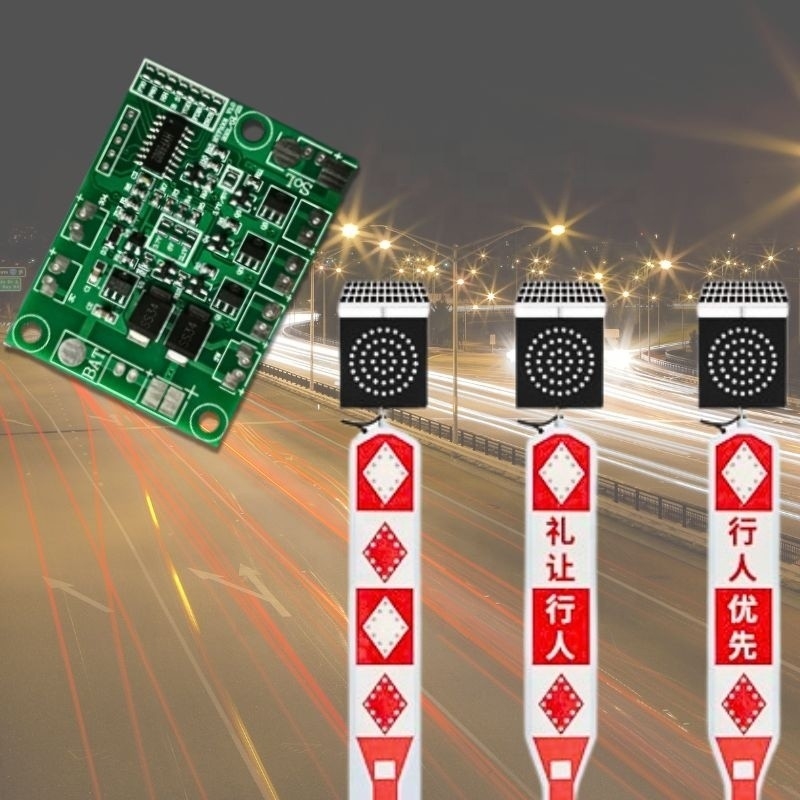

Solar Traffic Light Controller Board 2.4G Wireless Synchronous Transmission



2.4G Wireless Synchronous Transmission Warning Lamp Control Module features Solar Circuit Board
XZH: Your One-Stop ODM/OEM Solution Provider
Solar Traffic Light Controller Board 2.4G Wireless Synchronous Transmission 0

Solar Traffic Light Controller Board 2.4G Wireless Synchronous Transmission 1
Solar Traffic Light Controller Board 2.4G Wireless Synchronous Transmission 2
Solar Traffic Light Controller Board 2.4G Wireless Synchronous Transmission 3
Key Features:
1. Utilizes solar energy for charging during the day. The flashing module is turned off when the light is strong; at night or when the light is dim, it automatically starts flashing.
2. Supports simultaneous 3-way output, with each channel capable of delivering up to 1.5A of current.
3. Can be charged via solar panels, with a charging current of up to 3A.
4. Includes a reserved interface for a photoresistor sensor, allowing the choice between solar panels or photoresistor for light control.
5. Features a reserved interface for 12-hour or 24-hour mode selection, offering the option to light up only at night or around the clock.
6. Provides 8 lighting modes, including: 45 flashes/min (default), 30 flashes/min, 60 flashes/min, yellow and red slow flashing, three-channel (two-channel) strobe, single-channel fluorescent dot (breathing light), lane marker (three-channel), and crossing marker (three-channel).
7. 1. Supports a wide range of supply voltages (3.2V-24V), with typical supply voltages of 3.2V, 3.7V, 6V, 7.4V, 11.1V, 12V being compatible.
8. Features a low standby current of up to 180uA.
9. Includes a reserved programming interface, allowing for customized services. The solar-powered yellow and red slow-control board, solar-powered yellow and red fog light controller, with 8 selectable lighting modes, and an ultra-wide supply voltage range of 3.2V-20V.
Application Areas:
Solar-powered yellow flashing lights, yellow and red slow flashing lights, solar-powered lane markers
(1-way/2-way/3-way), solar-powered crossing markers (3-way), solar-powered strobe lights (1-way/2-way/3-way), solar-powered fluorescent dots (breathing lights), solar-powered contour markers, guide markers, guide signs/warning signs, luminous warning posts, solar-powered warning lights, solar-powered landscape lights, etc.
Customer Services
Solar Traffic Light Controller Board 2.4G Wireless Synchronous Transmission 4

PCB Service

XZH Supply single-side, double –side board, multilayer boards (1-20 layers), Boards type:Rigid PCB(CEM, FR4), Flexible PCB, Rigid-Flex PCB, MCPCB(Aluminum PCB), Ceramic PCB, RF PCB, etc.
Solar Traffic Light Controller Board 2.4G Wireless Synchronous Transmission 5

PCB Assembly&Components Sourcing

XZH offer Printed Circuit Board Assembly ,components Sourcing and complete solutions. what we can always gurantee is the best quality,competitive price and best service.
More Details or Other requirements welcome to Email and Chat with us.
Solar Traffic Light Controller Board 2.4G Wireless Synchronous Transmission 6
Solar Traffic Light Controller Board 2.4G Wireless Synchronous Transmission 7
Company Profile

Solar Traffic Light Controller Board 2.4G Wireless Synchronous Transmission 8
Solar Traffic Light Controller Board 2.4G Wireless Synchronous Transmission 9
Solar Traffic Light Controller Board 2.4G Wireless Synchronous Transmission 10
Founded in 2014, XZH Technology Co., Ltd is a reputable entity, known for its strong technical team, comprehensive quality assurance systems, and cutting-edge analytical instruments. As a specialized PCB manufacturer, our products serve a wide range of applications across consumer electronics, telecommunications, medical equipment, and industrial sectors, enjoying robust demand in European and Southeast Asian markets.

Our holistic service offerings encompass schematic design, board layout, component sourcing, firmware design, mechanical design, PCBA, and chip cloning. Additionally, we extend our services to component procurement, PCB and FPC assembly, packaging, and logistics, ensuring a seamless one-stop solution for our clients. We pride ourselves on sourcing high-quality raw materials and key components from renowned suppliers such as Sharp, Toshiba, ST, Samsung, Infineon, JRC, and NEC, further underscoring our commitment to excellence.

Our facilities, certified by ISO 9001:2000 and ISO 14001:2004, span 2,000 square meters and are staffed by 300 skilled workers. We boast a production capacity of 10,000 square meters of PCB and 5,000 square meters of PCB FPC monthly. Our commitment to quality is reflected in our rigorous QC processes, supported by 30 experienced auditors and advanced testing equipment like AOI, BGA X-ray, and PCB E-test, ensuring compliance with IECO-HSPM QC 080000, CE, UL, and RoHS standards.

Aiming for "Professional Management, Large-scale Industry, International Market" as our strategic goal, we invite you to explore partnership opportunities with us for detailed insights into our services and capabilities.
Solar Traffic Light Controller Board 2.4G Wireless Synchronous Transmission 11
Solar Traffic Light Controller Board 2.4G Wireless Synchronous Transmission 12
Certifications
Solar Traffic Light Controller Board 2.4G Wireless Synchronous Transmission 13
Solar Traffic Light Controller Board 2.4G Wireless Synchronous Transmission 14
Exhibition
Solar Traffic Light Controller Board 2.4G Wireless Synchronous Transmission 15
Our Advantages
Solar Traffic Light Controller Board 2.4G Wireless Synchronous Transmission 16
Solar Traffic Light Controller Board 2.4G Wireless Synchronous Transmission 17
Product Leading Time

Sample Lead time
Mass production lead time
Single sided PCB
1~3 days
4~7 days
Double sided PCB
2~5 days
7~10 days
Multilayer PCB
7~8 days
10~15 days
PCB Assembly
8~15 days
2~4 weeks
Delivery time
3-7 days
3-7 days
Package: Anti-static Package with carton


FAQ
Q1:Are my design files secure when I send them to you?
A:Your files held in complete safety and security. Your files are never
shared nor will any third parties have access to your design files. Fulltronics can sign a Non-disclosure agreement before sending
files.

Q2:For small quantity orders, can you produce prototype PCBs?
A:Yes, XZH PCB can produce prototypes. but the greater the quantity, the greater the cost savings.

Q3:Do you have after-sales product servicing available for your customers?
A:Yes, for any quality problems XZH PCB will take our responsibility to solve them for you at any time. What we can always guarantee is our best service, high quality with competitive price.

Q4:What's files do you need in the PCBA projects?
A:Exclude the pcb file, the PNP(Pick and Place) file and Components Position file also needed.

Q5: Does our product will be tested before shipment?
A: Yes, we could provide Function Circuit Testing if you provide us the testing methods.
