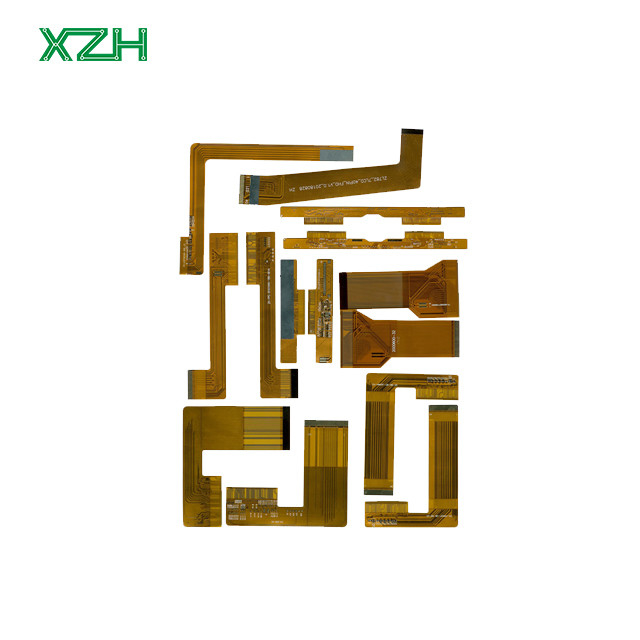

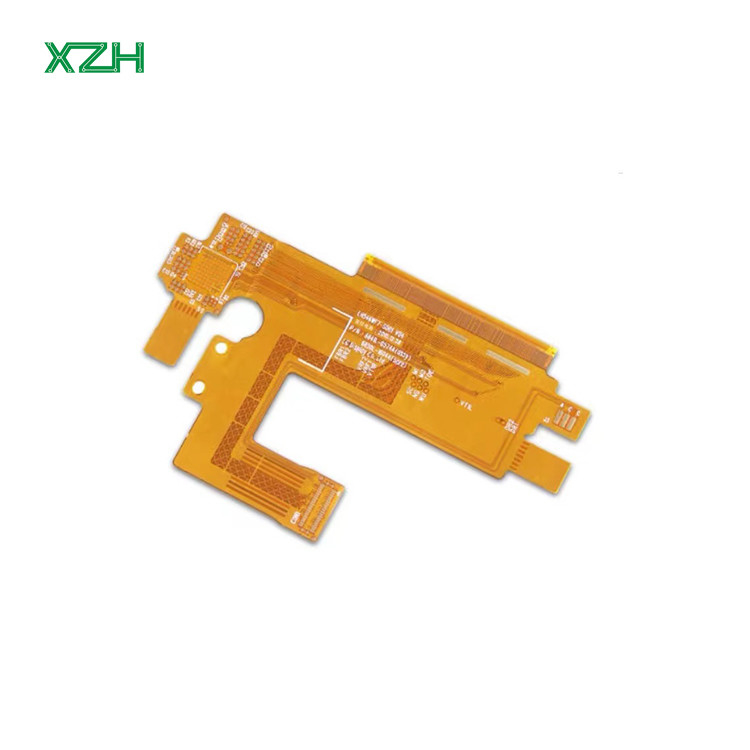

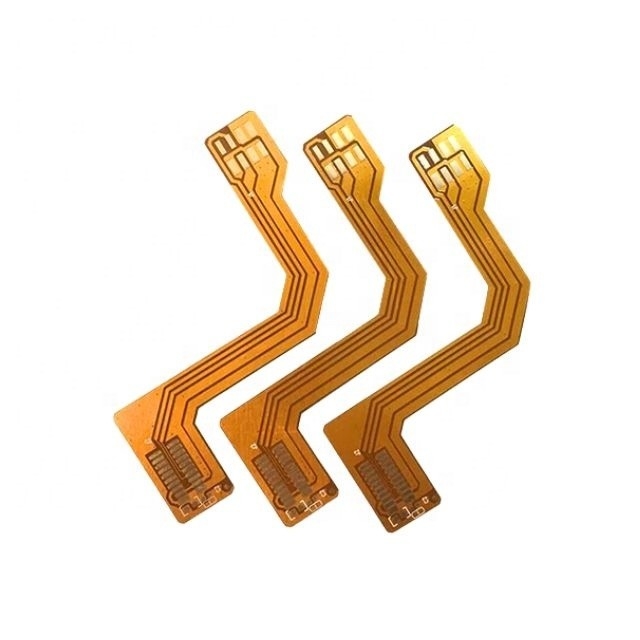

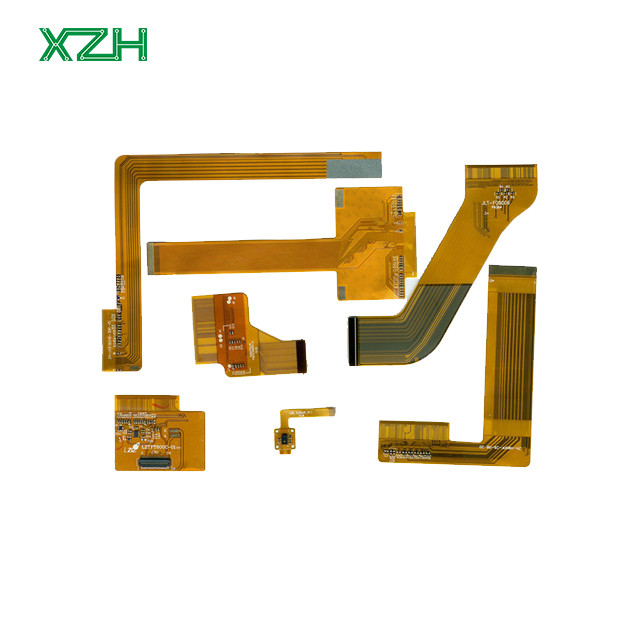

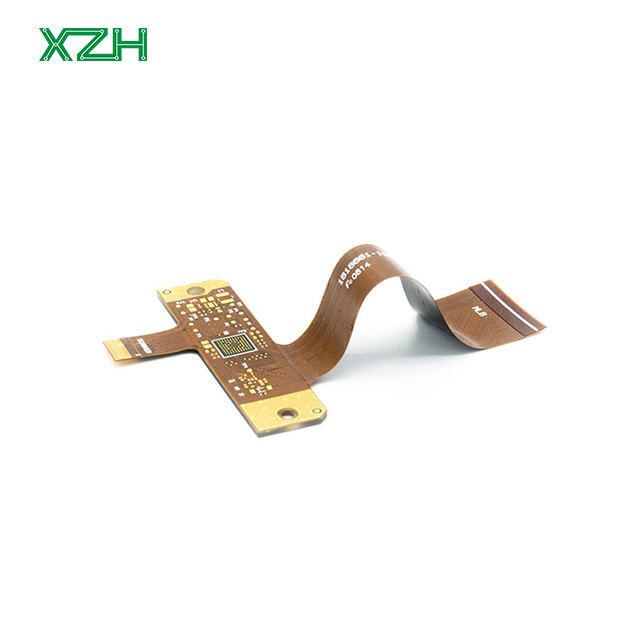

Materials
|
PI, Copper and Ni/Au
|
Type
|
FPC
|
Layers
|
1-4 layers
|
Finished Board Dimensions
|
10*15mm, 250*380mm
|
Board Thickness
|
0.057 to 0.6mm
|
Finished Board Thickness Tolerance
|
±2 mils
|
Drill Hole Diameter
|
0.15 to 6.7mm
|
Finished Via Diameter
|
0.1mm (minimum)
|
Inner Layer Dielectric Thickness (1/2 mils PI with 15um adhesive)
|
0.0275 to 0.1mm
|
Hole Diameter Tolerance of PTH
|
±2 mils
|
Hole Diameter Tolerance of NPTH
|
±1 mil
|
Hole Position Tolerance
(compared with Gerber data)
|
±1 mil
|
Thickness of PTH Hole Copper
|
8 to 30μm
|
Tolerance After Etching
|
± 30, 15% for impedance
|
Tolerance of Image to Image (minimum)
|
±3 mils
|
Tolerance of Image to Edge (minimum)
|
±2 mils
|
Cover Layer Registration (minimum)
|
6 mils
|
Punching Hole Diameter
|
0.1 to 5.0mm
|
Tolerance of Pasting Adhesive and Stiffener
|
±0.3mm
|
Punching Die Dimension Tolerance (hard die)
|
±4 mils
|
Punching Die Dimension Tolerance (soft die)
|
±12 mils
|
Impedance Tolerance (minimum)
|
±10%
|
SMT Tolerance and Pitch Width (minimum)
|
±4 mils
|
|
Sample Lead time
|
Mass production lead time
|
||
Single sided PCB
|
1~3 days
|
4~7 days
|
||
Double sided PCB
|
2~5 days
|
7~10 days
|
||
Multilayer PCB
|
7~8 days
|
10~15 days
|
||
PCB Assembly
|
8~15 days
|
2~4 weeks
|
||
Delivery time
|
3-7 days
|
3-7 days
|
||
Package: Anti-static Package with carton
|
|
|
