Green Consumer Electronics PCBA Assembly Android TV Box PCBA Board

Green Consumer Electronics PCBA Assembly Android TV Box PCBA Board

  • High Light

    Green Consumer Electronics PCBA

    ,

    Consumer Electronics PCBA Assembly

    ,

    Android TV Box PCBA Board

  • Type
    Consumer Electronics Pcba, PCB Factory/PCB Assembly
  • Supplier Type
    PCB Factory/PCB Assembly
  • Copper Thickness
    1 Oz, 1/3oz ~6oz
  • Min. Line Width
    1/2 Oz. Copper .003" +/- .0005" (0.0762mm)
  • Board Thickness
    0.4-3.0mm
  • Surface Finishing
    HAL, HASL Lead Free, Immersion Gold, Gold Plating, Gold Finger
  • PCB Test
    Flying Probe And AOI (Default)/Fixture Test
  • BGA Ball Pitch
    Flying Probe And AOI (Default)/Fixture Test
  • PCB Assembly Test
    Visual Inspection (default), AOI, FCT, X-RAY
  • Electrical Testing
    Net List Test, Flying Probe Test, Through Hole Test
  • Special Requirements
    Buried And Blind Vias, Impedance Control, Via Plug, BGA Soldering
  • Place of Origin
    Guangdong, China
  • Brand Name
    XZH
  • Model Number
    XZH PCBA
  • Price
    $15.00/pieces 1-99999 pieces
  • Packaging Details
    1.Inner: Vacuum packing or Anti-static package;<br>2.Outer: Standard export carton;<br>3.Customized package.
  • Supply Ability
    300000 Piece/Pieces per Month

Green Consumer Electronics PCBA Assembly Android TV Box PCBA Board

Shenzhen Custom PCB Manufactory PCB Board Assembly for Android TV Box PCBA With Design

Product Description

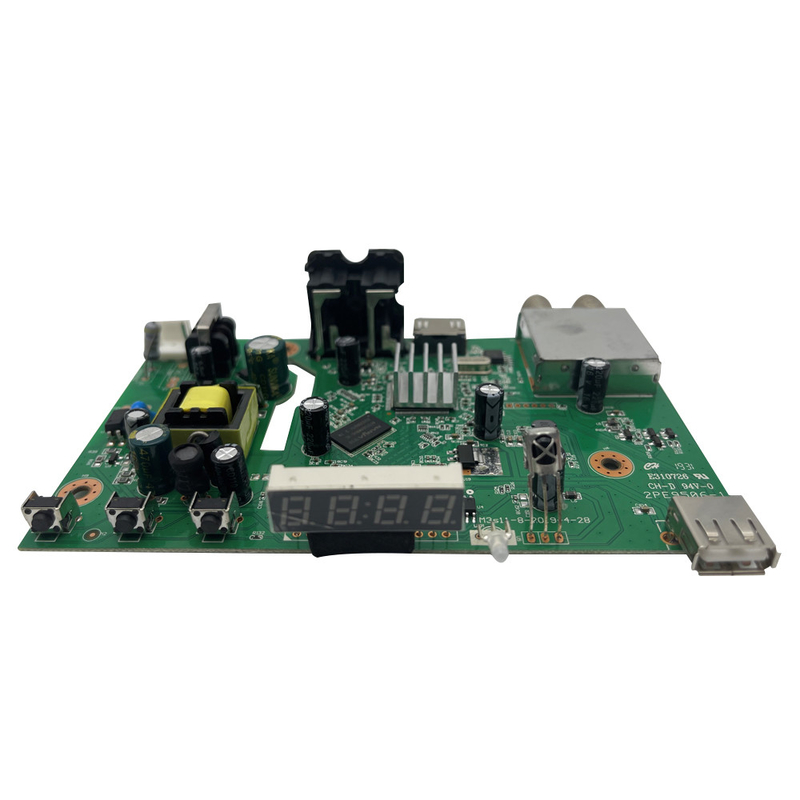

Green Consumer Electronics PCBA Assembly Android TV Box PCBA Board 0
Base Material
FR-4 / High TG FR-4 / Halogen Free material/Rogers/Arlon/Taconic/Teflon
Surface treatment
HASL, HASL lead free, Immersion Gold, Immersion Tin, Immersion Silver, Hard gold, Flash gold, OSP…
Solder mask
Double -sided green LPI ,Also support red , white, yellow, blue , black
Design file format
Gerber RS -274X, 274D, Eagle , and AutoCAD's DXF , DWG
Leading Time
Leading Time

Layer
Quick Turn/Usual Time
Mass production
2L
24hours/ 4-5days
8-10days
4L
48hours/ 6-7days
10-12days
6L
72hours/ 7-8days
12-14days
8L
72hours/ 8-10days
16-18days
10L
96hours/ 12-14days
18-20days
More Information,welcome Email us!

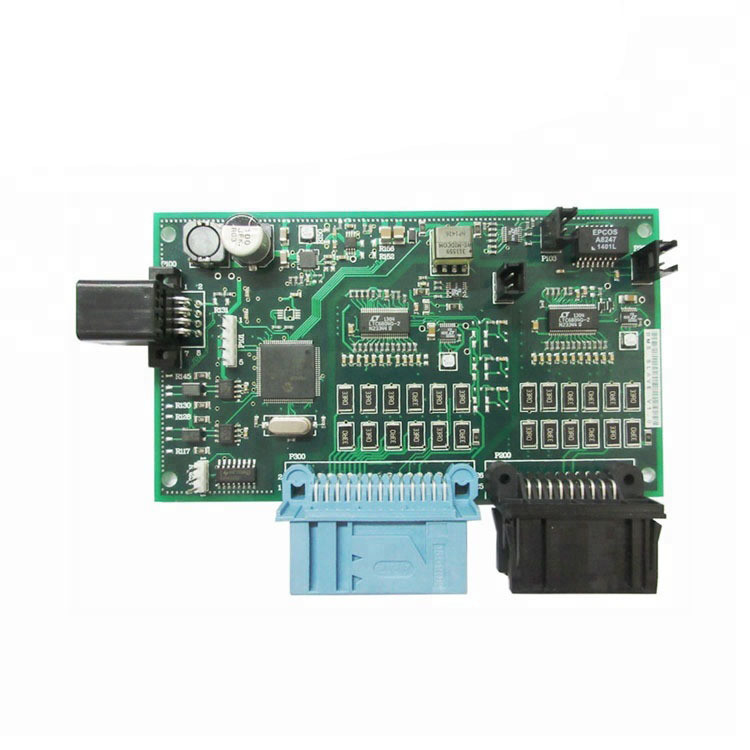

Green Consumer Electronics PCBA Assembly Android TV Box PCBA Board 1

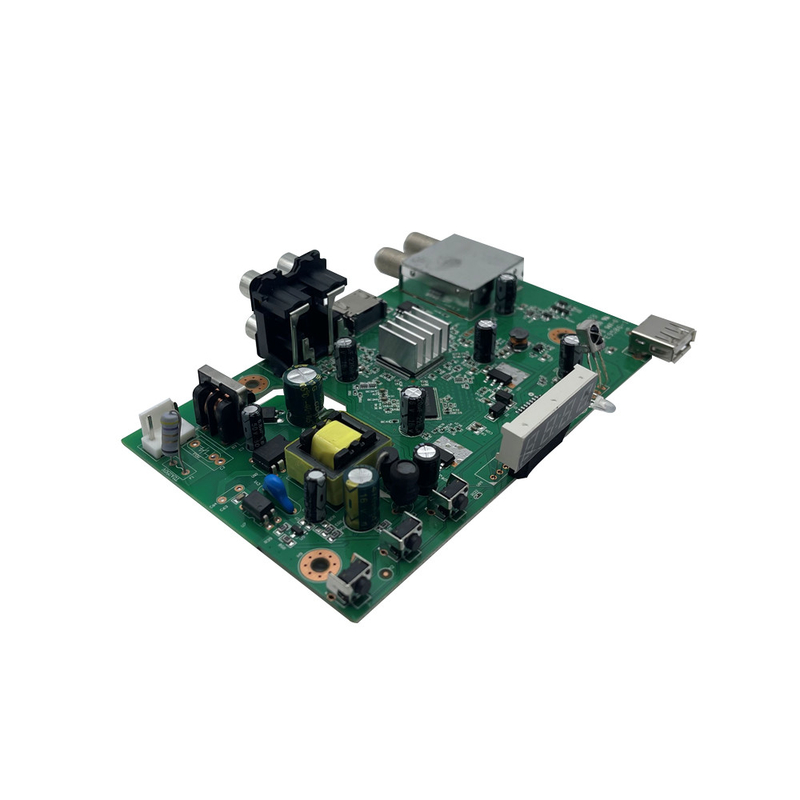

Green Consumer Electronics PCBA Assembly Android TV Box PCBA Board 2
Detailed terms for PCB assembly: * Technical requirement: 1. Professional surface-mounting and through-hole soldering technology 2. Various sizes like 1206, 0805, 0603 components SMT technology 3. ICT (in circuit test), FCT (functional circuit test) technology 4. PCB assembly with UL, CE, FCC, RoHS approval 5. Nitrogen gas reflow soldering technology for SMT 6. High standard SMT and solder assembly line 7. High density interconnected board placement technology capacity

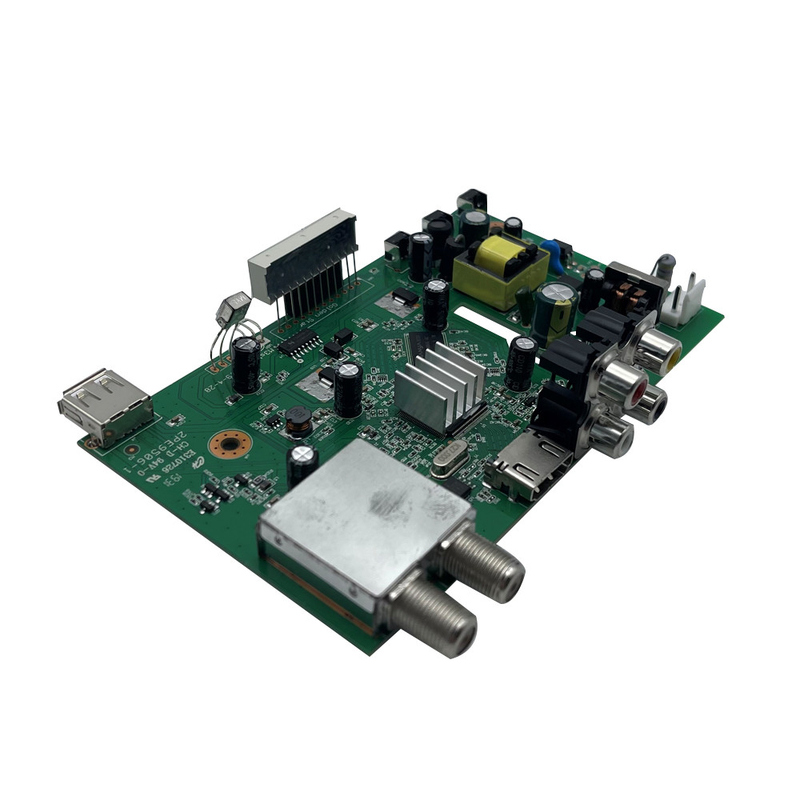

Green Consumer Electronics PCBA Assembly Android TV Box PCBA Board 3

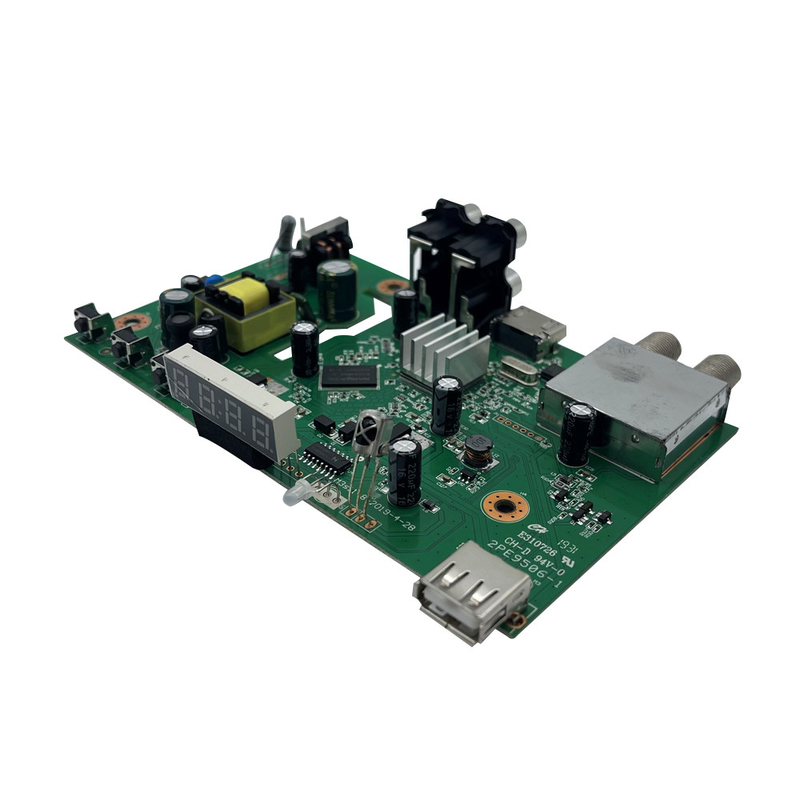

Green Consumer Electronics PCBA Assembly Android TV Box PCBA Board 4
Detailed terms for PCB assembly: * Technical requirement: 1. Professional surface-mounting and through-hole soldering technology 2. Various sizes like 1206, 0805, 0603 components SMT technology 3. ICT (in circuit test), FCT (functional circuit test) technology 4. PCB assembly with UL, CE, FCC, RoHS approval 5. Nitrogen gas reflow soldering technology for SMT 6. High standard SMT and solder assembly line 7. High density interconnected board placement technology capacity

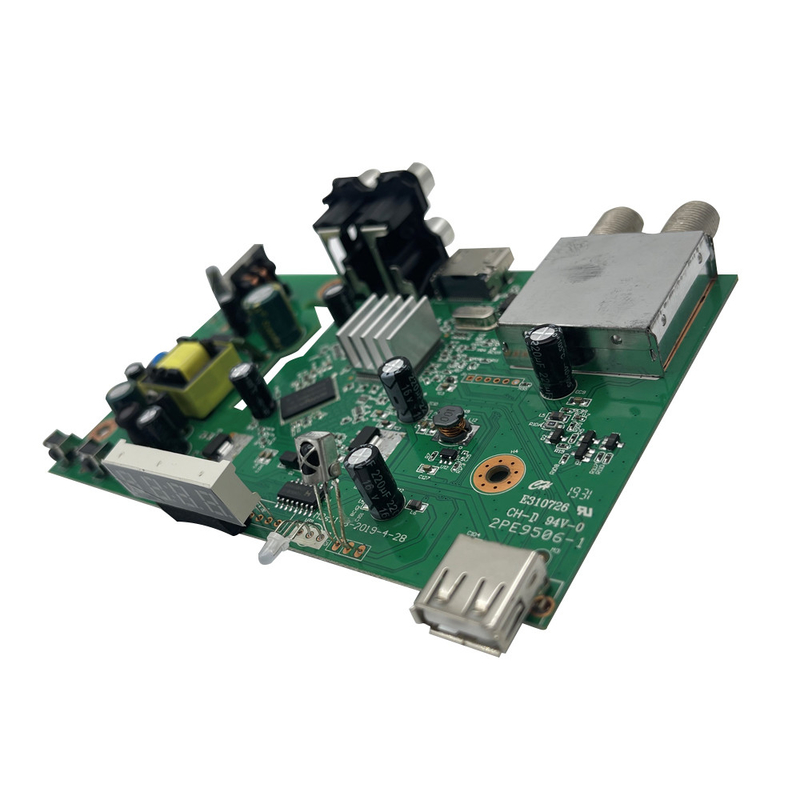

Green Consumer Electronics PCBA Assembly Android TV Box PCBA Board 5
Inquiry:
1.PCB:Pleasep provide gerber file for detail Quote.
2.PCBA:Please provide gerder file and Bom list.
3.COPY PCB/PCBA:Please provide us the details of PCB.Picture and Sample will be better.
Company Profile

Green Consumer Electronics PCBA Assembly Android TV Box PCBA Board 6
Company Introduction
Shenzhen XZH PCBA Founded in 2011, we focus on PCB(Rigid, Flex, Aluminium, Teflon, Rogers, ceramics, HDI...) making, PCB assembly, Components supply chain optimize and sourcing, enclosure development, function test for 10 years. We have a total of 8 SMT Lines, 3 DIP lines,2 test lines, and 2 packaging lines,13 AOI machines,1 X-RAY machine, 2 sample test machines. We imported advanced production and testing equipment, develop new technology and implement quality management and environmental management. Our rule is " Quality comes first". What we can Always guarantee is our best price, High quality, and fast delivery.
Recommend Products

FAQ
Q:Are my design files secure when I send them to you? A:Your files held in complete safety and security. Your files are never shared nor will any third parties have access to your design files. Fulltronics can sign a Non-disclosure agreement before sending files. Q:For small quantity orders, can you produce prototype PCBs? A:Yes, XZH PCB can produce prototypes. but the greater the quantity, the greater the cost savings. Q:Do you have after-sales product servicing available for your customers? A:Yes, for any quality problems XZH PCB will take our responsibility to solve them for you at any time. What we can always guarantee is our best service, high quality with competitive price. Q:What's files do you need in the PCBA projects? A:Exclude the pcb file, the PNP(Pick and Place) file and Components Position file also needed. Q: Does our product will be tested before shipment? A: Yes, we could provide Function Circuit Testing if you provide us the testing methods.
