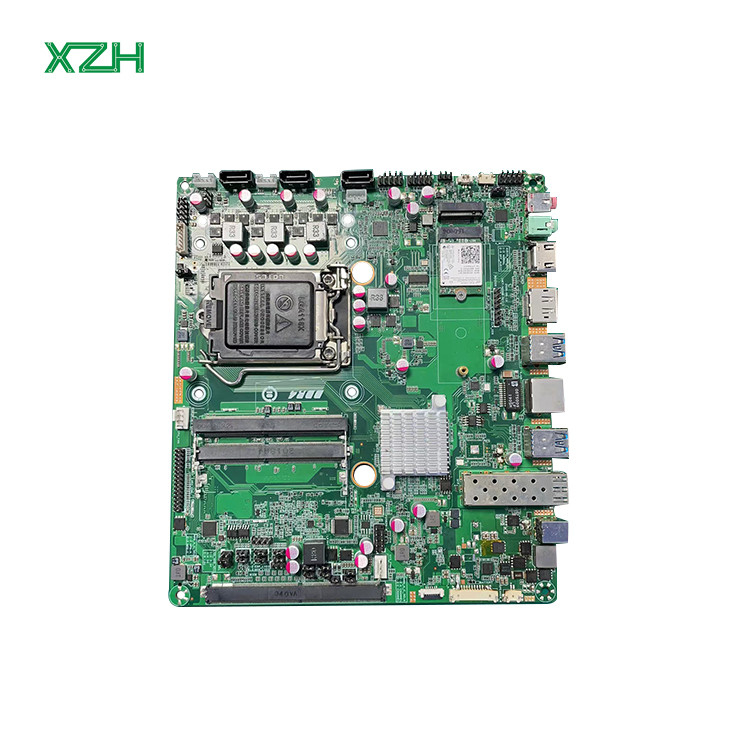

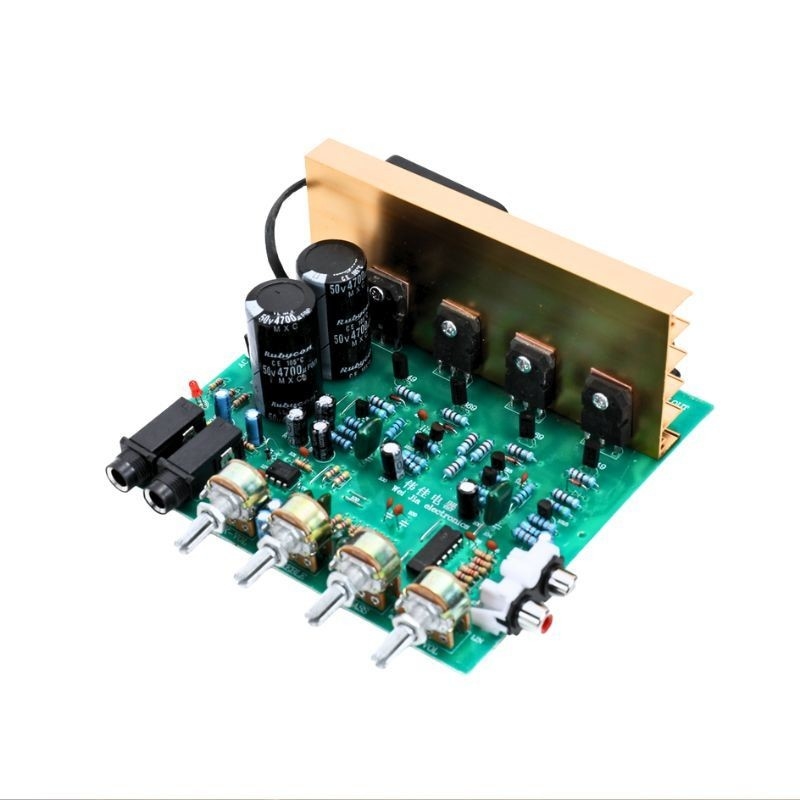

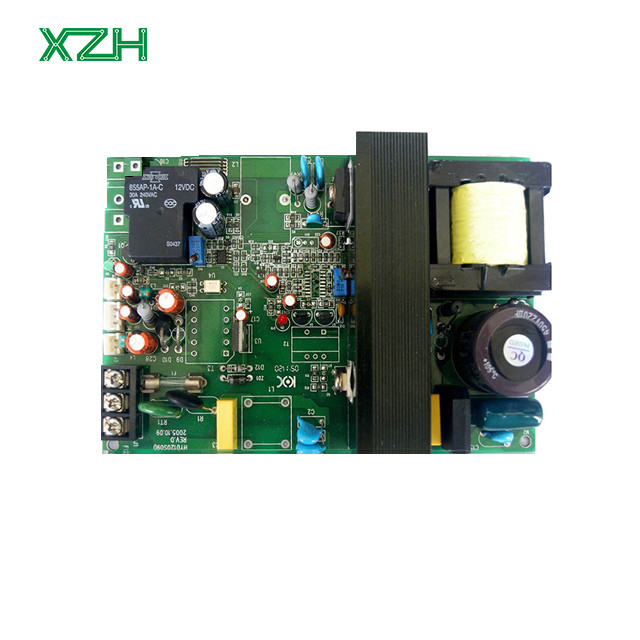

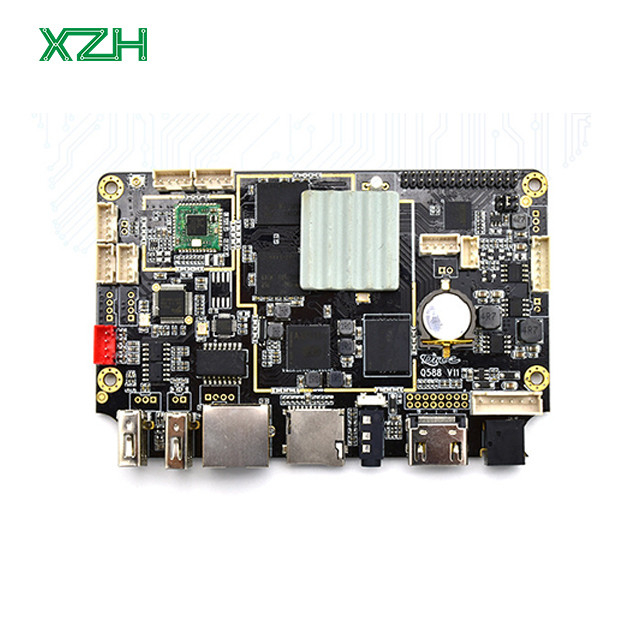

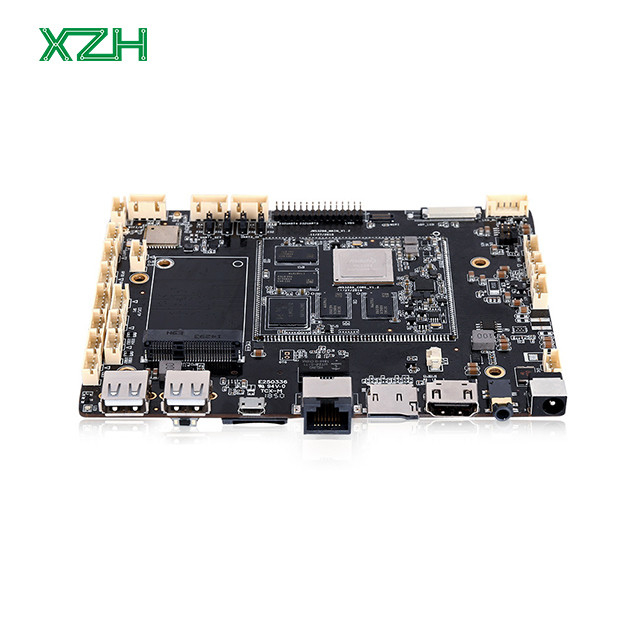

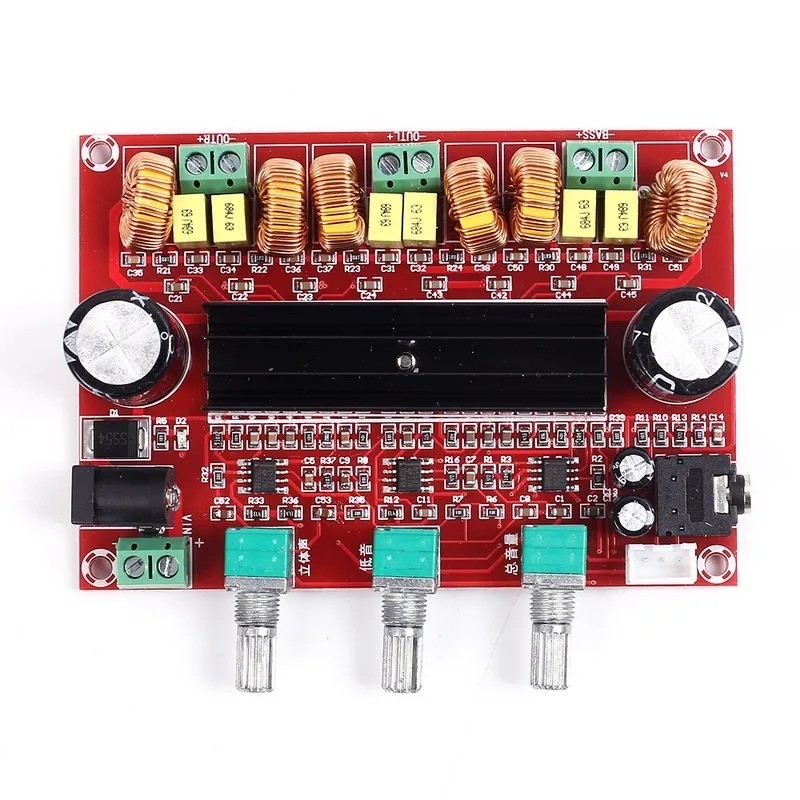

Description
|
Technology & Capabilities
|
|
|
|
|
||||
|
1. Product Range
|
Rigid PCBs from 2- 24 layers, HDI; Aluminium base
|
|
|
|
|
||||
|
2. Min. Board Thickness
|
2 layer
|
4 layer
|
6 layer
|
8 layer
|
10 layer
|
||||
|
|
min. 0.2 mm
|
0.4 mm
|
1 mm
|
1.2 mm
|
1.5 mm
|
||||
|
|
12 & 14 layer
|
16 layer
|
18 layer
|
20 layer
|
22 & 24 layer
|
||||
|
|
1.6 mm
|
1.7 mm
|
1.8 mm
|
2.2 mm
|
2.6 mm
|
||||
|
3. Max. Board Size
|
610 x 1200 mm
|
|
|
|
|
||||
|
4. Base Material
|
FR-4 Glass Epoxy laminate, Aluminium base, RCC
|
|
|
|
|
||||
|
5. Surface Finish Treatment
|
Electroless nickel Immersion gold ( Electoless Ni/Au). Organic Solerability Preservatives ( OSP or Entek). Hot Air Leveling ( Lead- Free, RoHS). Carbon Ink. Peelable Mask. Gold Fingers. Immersion Silve. Immersion Tin. Flash gold ( Electrolytic)
|
|
|
|
|
||||
|
6. Major Laminate
|
King Boad (KB-6150). ShengYi (S1141; S1170). Arion. YGA-1-1; Rogers and others.
|
|
|
|
|
||||
|
7. Via Holes
|
Copper PTH/ Blind Via/ Buried Via/ HDI 2+N+2 with IVH
|
|
|
|
|
||||
|
8. Copper Foil Thickness
|
18um/ 35um/ 70um~245um (outer layer 0.5oz~7oz)
18um/ 35um/ 70um~ 210um (inner layer 0.5oz~6oz)
|
|
|
|
|
||||
|
9. Min. Via Size and Type
|
Dia. 0.15mm (Finished).
Aspect Ratiao = 12; HDI holes (＜0.10mm)
|
|
|
|
|
||||
|
10. Min. Line Width & Spacing
|
0.75 mm/ 0.10mm ( 3mil/ 4mil)
|
|
|
|
|
||||
|
11. Min Via Hole Size & Pad
|
Via: Dia, 0.2mm/ pad. dia. 0.4mm; HDI＜0.10mm via
|
|
|
|
|
||||
|
12. Impedance I Control Tol.
|
+/- 10% ( min. +/- 7 Ohm)
|
|
|
|
|
||||
|
13. Solder Mask
|
Liquid Photo- Image (LPI)
|
|
|
|
|
||||
|
14. Profiling
|
CNC Routing, V- Cutting, Punching, Push back punching, Connector chamfering
|
|
|
|
|
||||
|
15. Capacity
|
100 k㎡ output monthly
|
|
|
|
|
||||
|
Item
|
Capability
|
|
Base material
|
FR4,High-TG FR4,CEM3,aluminum, High Frequencey frequency(Rogers,Taconic,Aron,PTFE,F4B)
|
|
Layers
|
1-4 Layers(Alunimum), 1-32 layers(FR4)
|
|
Copper Thickness
|
0.5oz, 1oz, 2oz, 3oz,4oz
|
|
Dielectric Thickness
|
0.05mm, 0.075mm, 0.1mm,0.15mm,0.2mm
|
|
board Core Thickness
|
0.4mm,0.6mm, 0.8mm, 1.0mm, 1.2mm,
1.5mm, 2.0mm, 3.0mm and 3.2mm |
|
Board Thickness
|
0.4mm - 4.0mm
|
|
Thickness Tolerance
|
+/-10%
|
|
Aluminum Machining
|
Drilling, Tapping, Milling, Routing, Die-Punching,
Break-off tab available |
|
Min Hole
|
0.2 mm
|
|
Min Track Width
|
0.2mm (8mil)
|
|
Min Track Gap
|
0.2mm (8mil)
|
|
Min SMD Pad Pitch
|
0.2mm (8mil)
|
|
Surface Finishing
|
HASL lead free,ENIG,Plated Gold,Immersion Gold,OSP
|
|
Solder Mask Color
|
Green, Blue, Black, White, Yellow, Red, Matt Green, Matt Black, Matt Blue
|
|
Legend Color
|
Black, White etc
|
|
Assembly Types
|
Surface mount
Thro-hole Mixed technology (SMT & Thru-hole) Single or double sided placement Conformal coating Shield cover assembly for EMI emission control |
|
Parts Procurement
|
Full Turnkey
Partial Turnkey Kitted/Consigned |
|
Component types
|
SMT 01005 or larger
BGA 0.4mm pitch, POP (Package on Package) WLCSP 0.35mm pitch Hard metric connectors Cable & wire |
|
SMT Parts Presentation
|
Bulk
Cut tape Partial reel Reel Tube Tray |
|
Stencils
|
Laser-cut stainless steel
|
|
Other Techniques
|
Free DFM Review
Box Build Assembly 100% AOI test and X-ray test for BGA IC programming Components cost-down Function test as custom Protection technology |
|
|
Sample Lead time
|
Mass production lead time
|
||
|
Single sided PCB
|
1~3 days
|
4~7 days
|
||
|
Double sided PCB
|
2~5 days
|
7~10 days
|
||
|
Multilayer PCB
|
7~8 days
|
10~15 days
|
||
|
PCB Assembly
|
8~15 days
|
2~4 weeks
|
||
|
Delivery time
|
3-7 days
|
3-7 days
|
||
|
Package: Anti-static Package with carton
|
|
|
||
