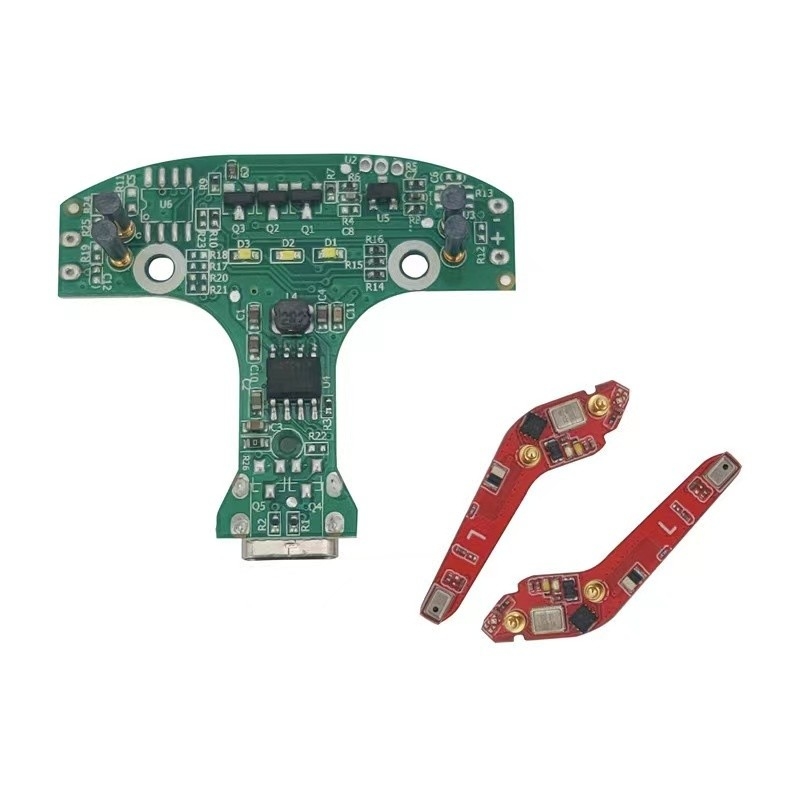

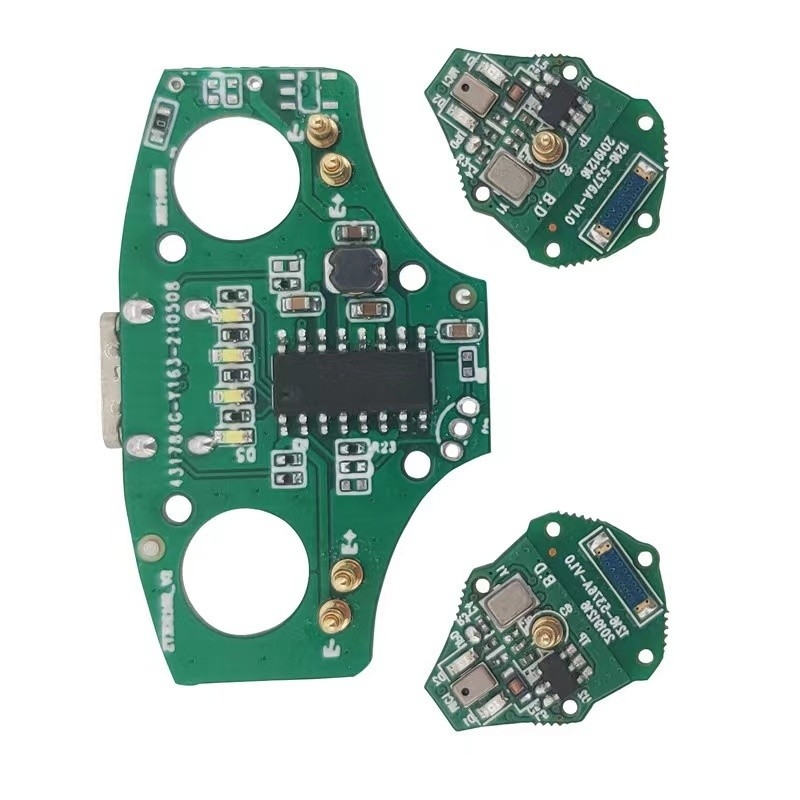

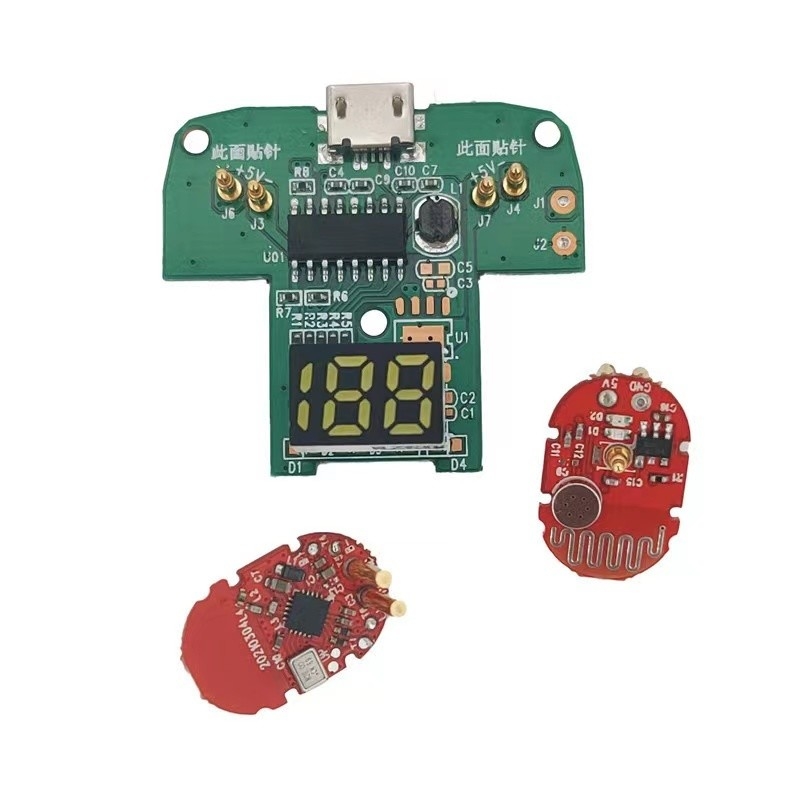

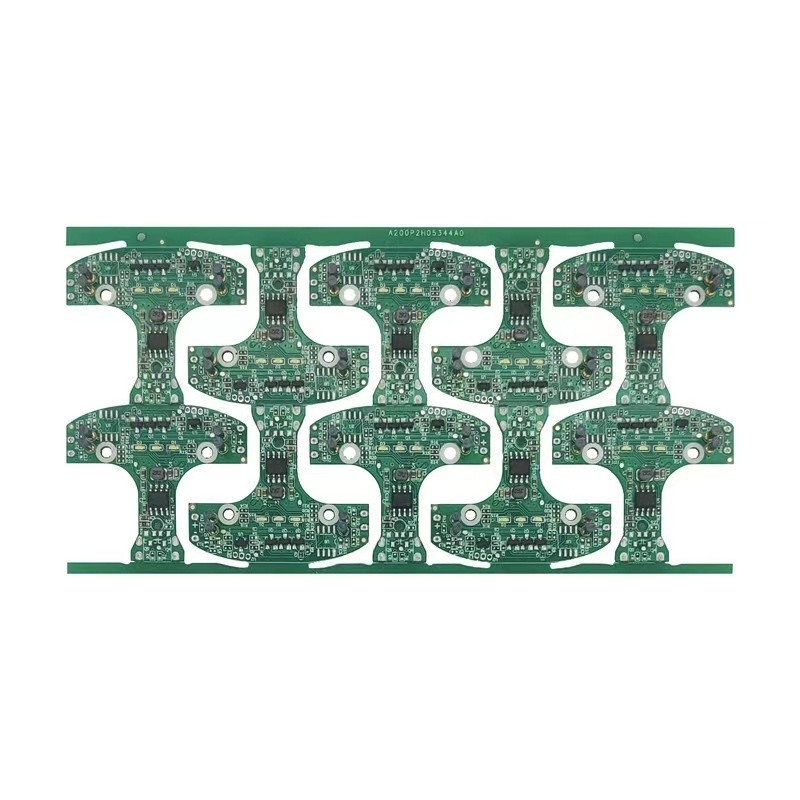

FR4 Material TWS Bluetooth Earphone PCB One Stop Service with Min. Line Spacing 0.1MM

FR4 Material TWS Bluetooth Earphone PCB One Stop Service with Min. Line Spacing 0.1MM

Products - PCBA Application - Consumer Electronics PCBA
  • Base Material
    Aluminum Boards, FR-4 Glass Epoxy Laminate, Aluminium Base, RCC
  • Copper Thickness
    1-20oz
  • Board Thickness
    0.6-1.6MM
  • Min. Hole Size
    0.15MM
  • Min. Line Width
    0.15mm
  • Min. Line Spacing
    0.1MM
  • Surface Finishing
    Immersion Silver
  • Product Name
    TWS Bluetooth Earphone PCB
  • Product Range
    PCBs In 1-32Layers,HDI,Aluminum Base
  • Max Board Size
    610*1200MM
  • Surface Finish Treatment
    Immersion Gold,Carbon Ink,Gold Fingers,Immersion Silver;Immersion Tin
  • Major Laminate
    King Board,ShengYi(S1141; S1170),Arlon,YGA-1-1;Rogers And Others
  • Via Holes
    18um 135um L 70um ~ 245um18um 1 35um L 70Oum ~ 210um
  • Min. Via Size And Type
    Dia. 0.15mm (Finished);Aspect Ratio = 12; HDI Holes (<0.10mm)
  • 100% Testing
    By ICT/FCT To Detect Potential Failures
  • PCB Design
    Schematic Capture,reverse Engineering
  • Port
    Shenzhen
  • Place of Origin
    China
  • Brand Name
    Original and New
  • Model Number
    XZH-PCB
  • Price
    $0.50/pieces 1-9 pieces
  • Packaging Details
    1.Inner: Vacuum packing or Anti-static package;<br>2.Outer: Standard export carton;<br>3.Customized package.
  • Supply Ability
    300000 Piece/Pieces per Month

FR4 Material TWS Bluetooth Earphone PCB One Stop Service with Min. Line Spacing 0.1MM

  • FR4 Material TWS Bluetooth Earphone PCB One Stop Service with Min. Line Spacing 0.1MM
  • FR4 Material TWS Bluetooth Earphone PCB One Stop Service with Min. Line Spacing 0.1MM
  • FR4 Material TWS Bluetooth Earphone PCB One Stop Service with Min. Line Spacing 0.1MM
  • FR4 Material TWS Bluetooth Earphone PCB One Stop Service with Min. Line Spacing 0.1MM
Get Price Contact Now
OFFICE AND FACTORY
FR4 Material TWS Bluetooth Earphone PCB One Stop Service with Min. Line Spacing 0.1MM 0
FR4 Material TWS Bluetooth Earphone PCB One Stop Service with Min. Line Spacing 0.1MM 1
FR4 Material TWS Bluetooth Earphone PCB One Stop Service with Min. Line Spacing 0.1MM 2
Shenzhen xinzhanhong technology co,ltd
XZH PCBA based in Shenzhen but operating nationally, PCBA Technical Solutions specialise in commercial and retail HVAC and Mechanical projects. From our full design and quotation services, through to the installation, project management and maintenance teams, we are able to provide our clients with their full PCBA specification.
FR4 Material TWS Bluetooth Earphone PCB One Stop Service with Min. Line Spacing 0.1MM 3
XZH PCBA

WHAT OUR CUSTOMERS SAY

"We at Italy have continued to work with XZH PCBA over the years due to their high level of professionalism, reliability,technical know how and support. Whether it is a crucial breakdown repair or new installation PCBA is our first call of choice”
Capabiity
Description
Technology & Capabilities
1. Product Range
Rigid PCBs from 2- 24 layers, HDI; Aluminium base
2. Min. Board Thickness
2 layer
4 layer
6 layer
8 layer
10 layer
min. 0.2 mm
0.4 mm
1 mm
1.2 mm
1.5 mm
12 & 14 layer
16 layer
18 layer
20 layer
22 & 24 layer
1.6 mm
1.7 mm
1.8 mm
2.2 mm
2.6 mm
3. Max. Board Size
610 x 1200 mm
4. Base Material
FR-4 Glass Epoxy laminate, Aluminium base, RCC
5. Surface Finish Treatment
Electroless nickel Immersion gold ( Electoless Ni/Au). Organic Solerability Preservatives ( OSP or Entek). Hot Air Leveling ( Lead- Free, RoHS). Carbon Ink. Peelable Mask. Gold Fingers. Immersion Silve. Immersion Tin. Flash gold ( Electrolytic)
6. Major Laminate
King Boad (KB-6150). ShengYi (S1141; S1170). Arion. YGA-1-1; Rogers and others.
7. Via Holes
Copper PTH/ Blind Via/ Buried Via/ HDI 2+N+2 with IVH
8. Copper Foil Thickness
18um/ 35um/ 70um~245um (outer layer 0.5oz~7oz)
18um/ 35um/ 70um~ 210um (inner layer 0.5oz~6oz)
9. Min. Via Size and Type
Dia. 0.15mm (Finished).
Aspect Ratiao = 12; HDI holes （＜0.10mm)
10. Min. Line Width & Spacing
0.75 mm/ 0.10mm ( 3mil/ 4mil)
11. Min Via Hole Size & Pad
Via: Dia, 0.2mm/ pad. dia. 0.4mm; HDI＜0.10mm via
12. Impedance I Control Tol.
+/- 10% ( min. +/- 7 Ohm)
13. Solder Mask
Liquid Photo- Image (LPI)
14.  Profiling
CNC Routing, V- Cutting, Punching, Push back punching, Connector chamfering
15.  Capacity
100 k㎡ output monthly
