Flexible Industrial PCBA Boards PCB Motherboard Fr4 94v0 IPC-III Standard

Flexible Industrial PCBA Boards PCB Motherboard Fr4 94v0 IPC-III Standard

  • High Light

    Flexible Industrial PCBA

    ,

    Industrial PCBA Boards

    ,

    PCB Motherboard Fr4

  • Base Material
    Aluminum Boards
  • Copper Thickness
    1-20OZ
  • Board Thickness
    1.6MM
  • Min. Hole Size
    0.15MM
  • Min. Line Width
    0.15MM
  • Min. Line Spacing
    0.1MM
  • Surface Finishing
    OSP, Gold Plating, Immersion Gold
  • Board Size
    Customized
  • Service
    OEM Services Provided
  • Keywords
    Smart Home Control Panel
  • Surface Treatment
    Hard Gold Finger
  • Testing Service
    100% AOI FCT ICT Testing
  • PCBA Service
    Soft Thin Pcb Flexible Single
  • Key Words
    Pcb Pcba Prototype
  • Sample/OEM/ODM
    Weclome
  • Customize
    Board Thickness
  • PCB Standard
    IPC-A-610 D/IPC-III Standard
  • Layer
    1-58 Layers
  • Port
    Shenzhen
  • Place of Origin
    Guangdong, China
  • Brand Name
    Lina
  • Model Number
    XZH-PCBA
  • Price
    $0.50/pieces 1-9 pieces
  • Packaging Details
    1.Inner: Vacuum packing or Anti-static package;<br>2.Outer: Standard export carton;<br>3.Customized package.
  • Supply Ability
    300000 Piece/Pieces per Month

Flexible Industrial PCBA Boards PCB Motherboard Fr4 94v0 IPC-III Standard

Product Overview



IPC-III Standard Pcba Motherboard Fr4 94v0 Pcb Board Circuit Led Pcb Board Assembly
XZH PCB offers consistent services and assistance from product development and prototyping to mass production. Providing various proposals to solve challenges relating to PCB mounting, we support high-quality manufacturing. We also flexibly respond to changes in mass production systems due to sudden fluctuations in production.
We help ensure high-quality manufacturing with careful consideration of productivity and quality. Our IPC-A-610 certified specialists and certified ESD coordinators respond to your requests.
We help solve various challenges in PCB mounting from development and prototyping to mass production. With consideration of the
improvement of productivity and quality, we offer proposals for substrate design, material procurement, manufacturing methods, and many other matters.
FEATURES AT A GLANCE
1. XZH PCBA Features and strengths
(1) Providing a one-stop service

(2)Passion for manufacturing

(3) Consistent services and assistance from product development and prototyping to mass production

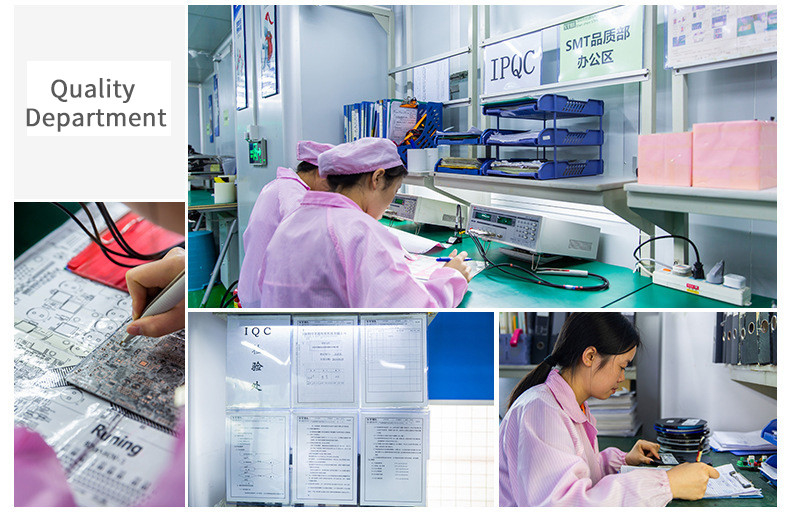

2. How quality guarantees?
XZH PCBA offers requirements specification is based on IPC standards IPC 6012 rigid PCBs, IPC 6013 Flex, IPC 6016 hdI with some additions.
Acceptance requirements are in accordance with IPC 600.
Our factories are ISO 9001 and ISO 14001 certified.

Flexible Industrial PCBA Boards PCB Motherboard Fr4 94v0 IPC-III Standard 0
Flexible Industrial PCBA Boards PCB Motherboard Fr4 94v0 IPC-III Standard 1
PCB Deign
Flexible Industrial PCBA Boards PCB Motherboard Fr4 94v0 IPC-III Standard 2
Flexible PCB
Flexible Industrial PCBA Boards PCB Motherboard Fr4 94v0 IPC-III Standard 3
PCB Layout
Flexible Industrial PCBA Boards PCB Motherboard Fr4 94v0 IPC-III Standard 4
PRODUCT CONFIGURATION
Flexible Industrial PCBA Boards PCB Motherboard Fr4 94v0 IPC-III Standard 5
We can produce your Flex & Flex-Rigid PCBs with stiffened areas in FR4 or Polyimide.
Flexible Industrial PCBA Boards PCB Motherboard Fr4 94v0 IPC-III Standard 6
All of our Flex & Flex-Rigid PCBs are Bare Board Tested as standard
Flexible Industrial PCBA Boards PCB Motherboard Fr4 94v0 IPC-III Standard 7
Come and join us! XZH PCBA
SALES AND SERVICE NETWORK
Flexible Industrial PCBA Boards PCB Motherboard Fr4 94v0 IPC-III Standard 8
FAQ
1. What is needed for PCB & PCBA quotation?
XZHPCBA: For PCB: Quantity, Gerber file and technic requirements(material,size, surface finish treatment, copper thickness,board
thickness).
For PCBA: PCB information, BOM,Testing documents.

2. How to keep our product information and design file secret ?
XZHPCBA: We are willing to sign a NDA effect by customers side local law and promising tokeep customers data in high confidential
level.

3.What are the main products of your PCB/PCBA services?
XZHPCBA: Automotive, Medical, Industry Control, IOT, Smart Home, Military, Aerospace.

4. How to keep our product information and design file secret ?
XZHPCBA: We are willing to sign a NDA effect by customers side local law and promising tokeep customers data in high confidential
level.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,DEQ,DDP,DDU,Express Delivery,DAF,DES;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,MoneyGram,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
